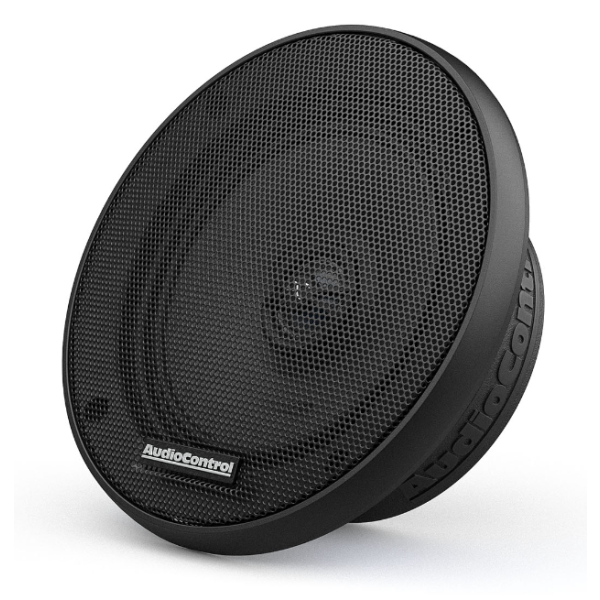

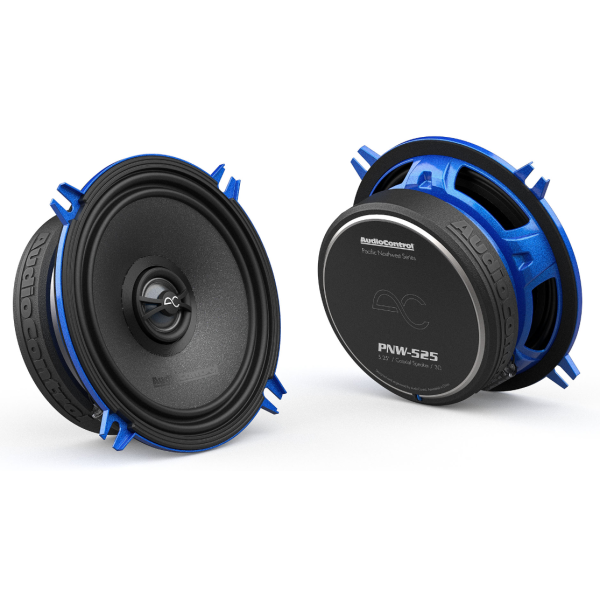

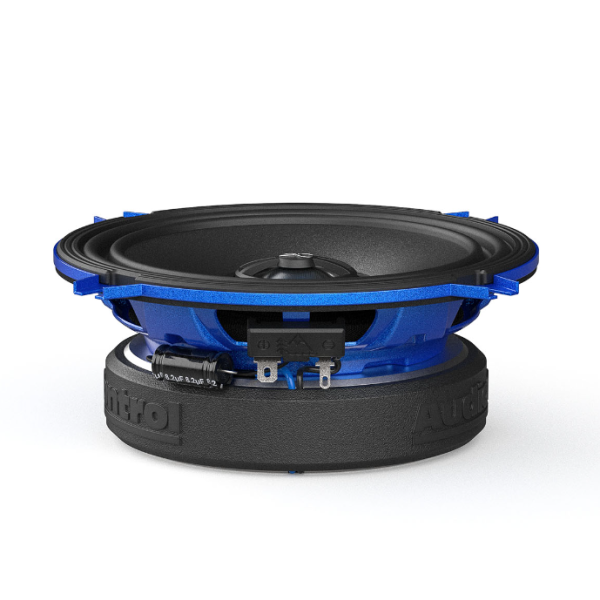

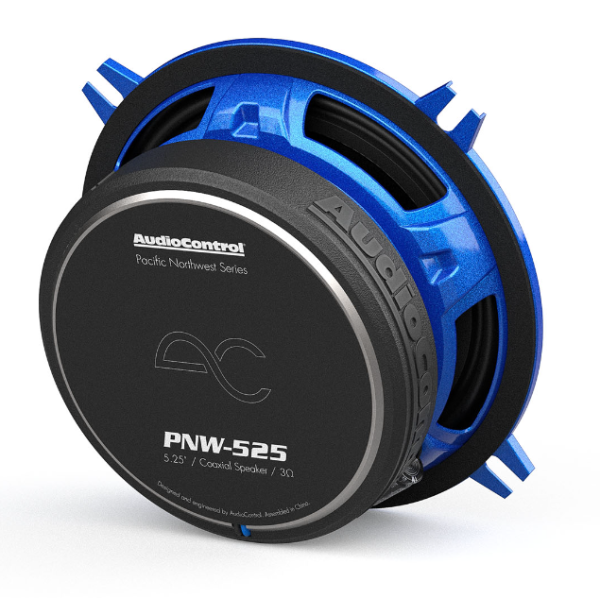

AudioControl PNW-525: 5.3" PNW-Series Coaxial Speaker
- In stock, ready to ship
Specifications:
- Crossover type: Butterworth
- DC resistance (RE): 2.6 ohms
- Filter type: HP
- System frequency response (FS): 75 - 20 K hz
- XO frequency: 5250 hz
- Slope (octave): -6 dB
- Tweeter voice coil diameter: 20 mm
- Midrange voice coil diameter: 35 mm
In the box:
- PNW-525
- Manual
- Warranty
Dimensions:
- Overall diameter (without grille): 5.2" / 133 mm
- Cutout diameter: 3.6" / 91.5 mm
- Mounting depth: 1.7" / 42.2 mm
- Height (without and including grille): 0.2" / 4.1 mm, 0.6" / 16.5 mm
- Motor diameter (including cover): 3" / 75.4 mm
- Grille overall diameter: 5.4" / 137 mm
