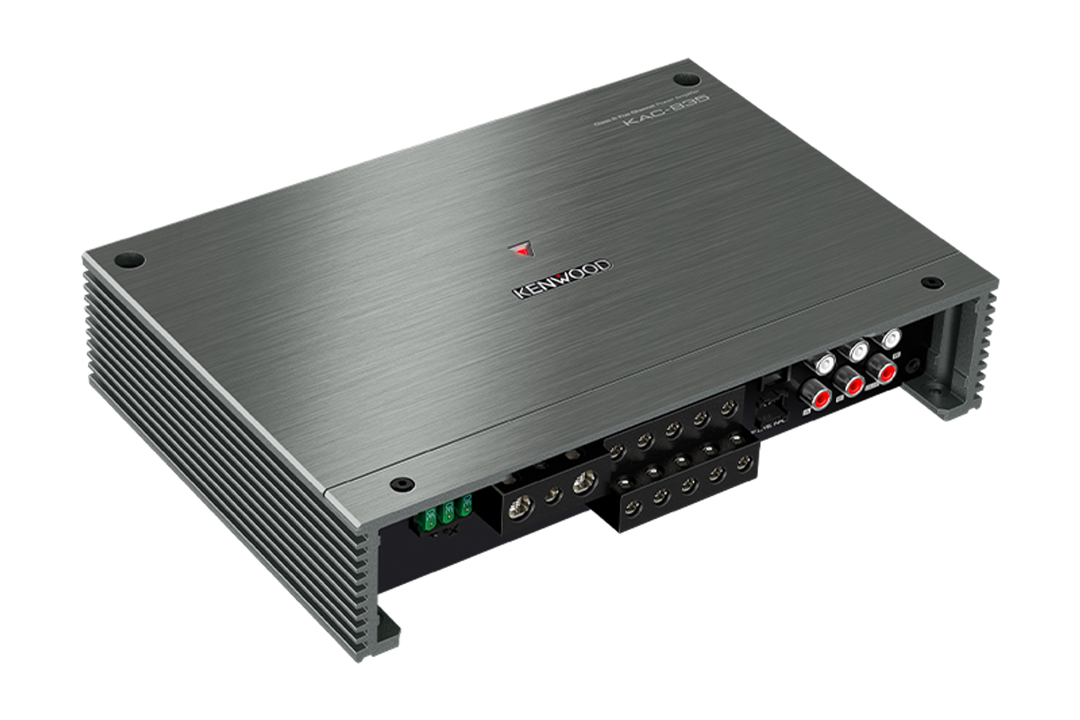

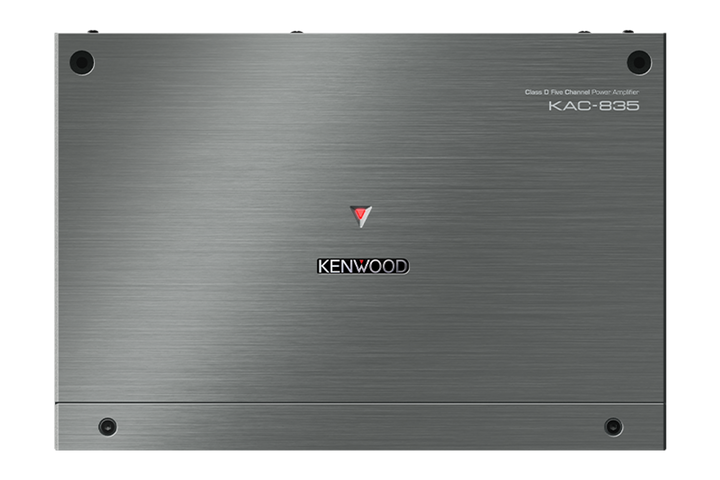

Kenwood KAC-835: 75 W RMS x 4 + 500 W x 1 Class-D 5-Channel Power Amplifier

About the Kenwood KAC-835: 75 W RMS x 4 + 500 W x 1 Class-D 5-Channel Power Amplifier

Rich and immersive high resolution audio:

High resolution audio is high quality sound that exceeds CD standard.  High resolution audio captures and beautifully expresses all the details of your favorite music.  Through ultra high and low frequencies, immerse yourself in a rich and high quality sonic experience.

Output coil through magnetic shield:

Prevents magnetic flux from radiating from the subwoofer's coil, resulting in reduced noise and enhanced sound quality.

High quality capacitors:

PMLCAP's (polymer multi layer capacitors) are utilized in the LC filter circuits to decrease distortion, ensuring clear detail for a truer to life sound.

Infrasonic filter (ISF):

When the infrasonic filter switch is turned on, the Amplifier cuts off the low frequencies below 25 hz, which makes the Amplifier's power supply and output devices more efficient, providing clear bass output.

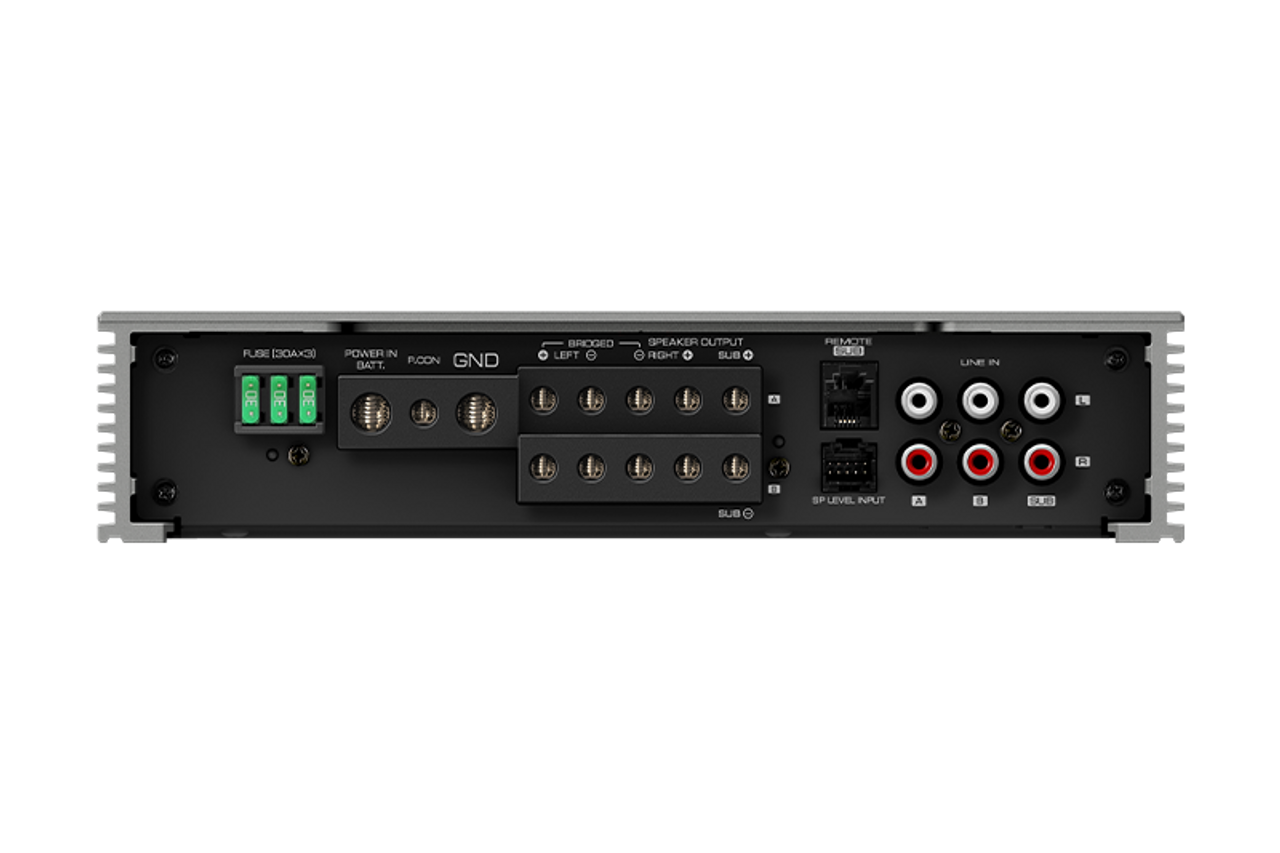

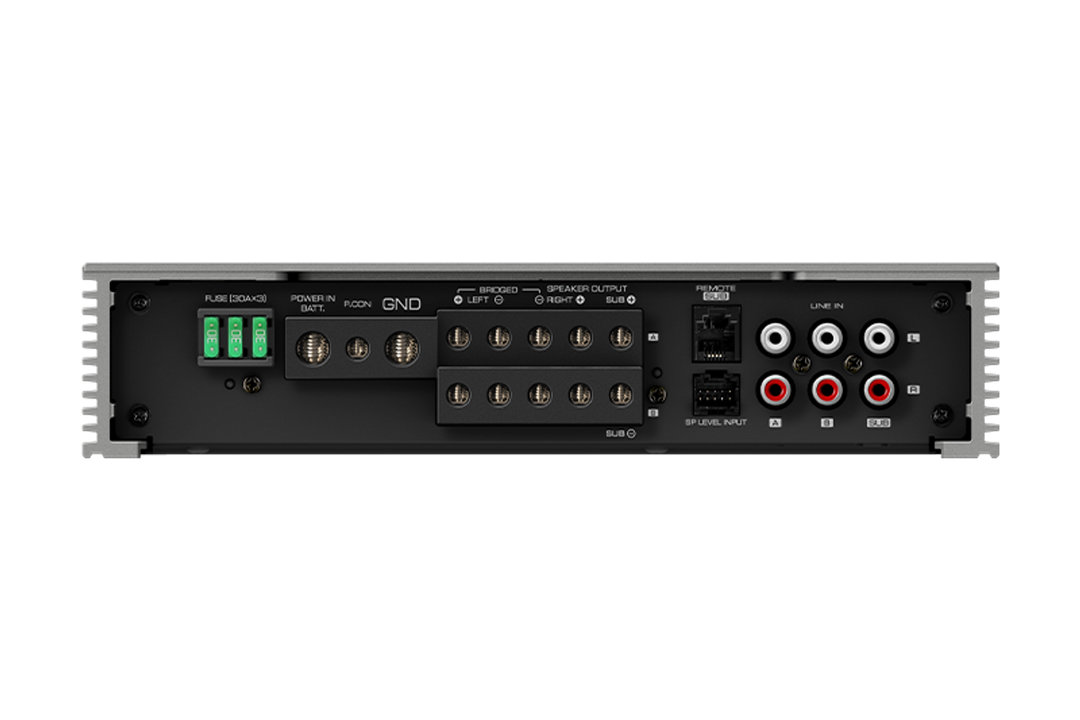

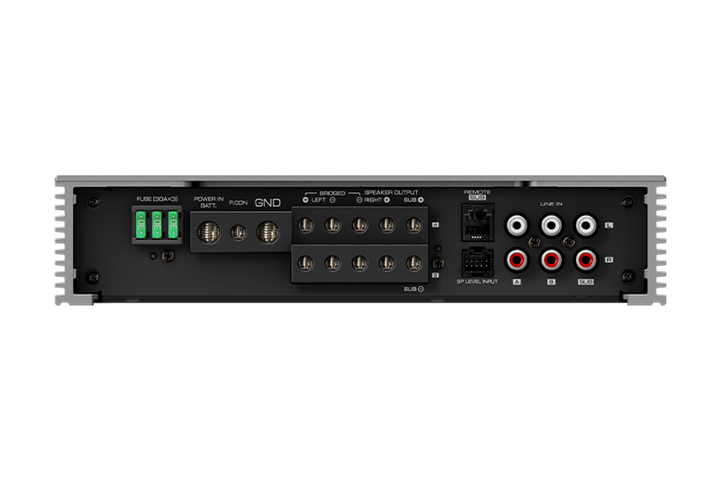

1 side connection:

All terminals and connections are on one side for easier installation and a cleaner look.

Speaker level input harness:

Speaker level input harness is included to connect to speaker wires from factory installed receivers.

Product highlights:

• Maximum Power 1600 W
• RMS 75 W x 4 (4 Ω)
• RMS 50 W x 4 + 300 W (4 Ω)
• RMS 75 W x 4 + 500 W (2 Ω)
• Size (") (W) 9 - 3 / 4" x (H) 2 - 1 / 16" x (D) 6 - 5 / 8"
• High resolution audio certified

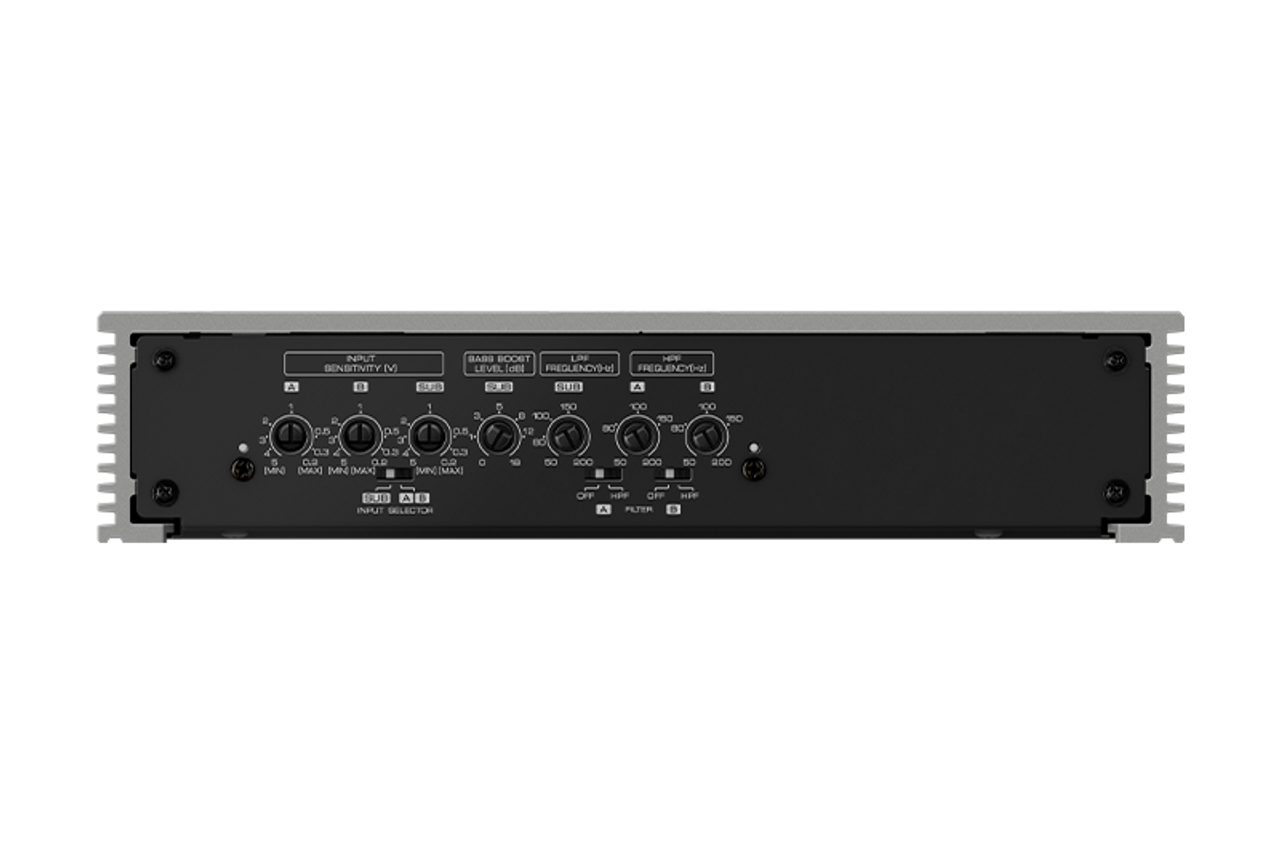

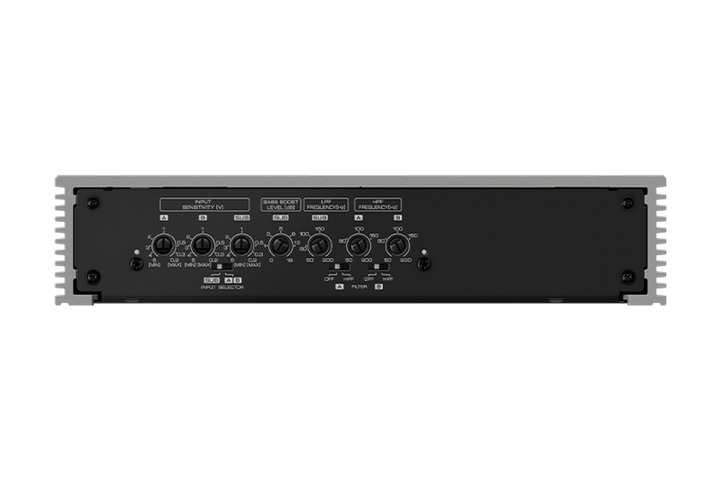

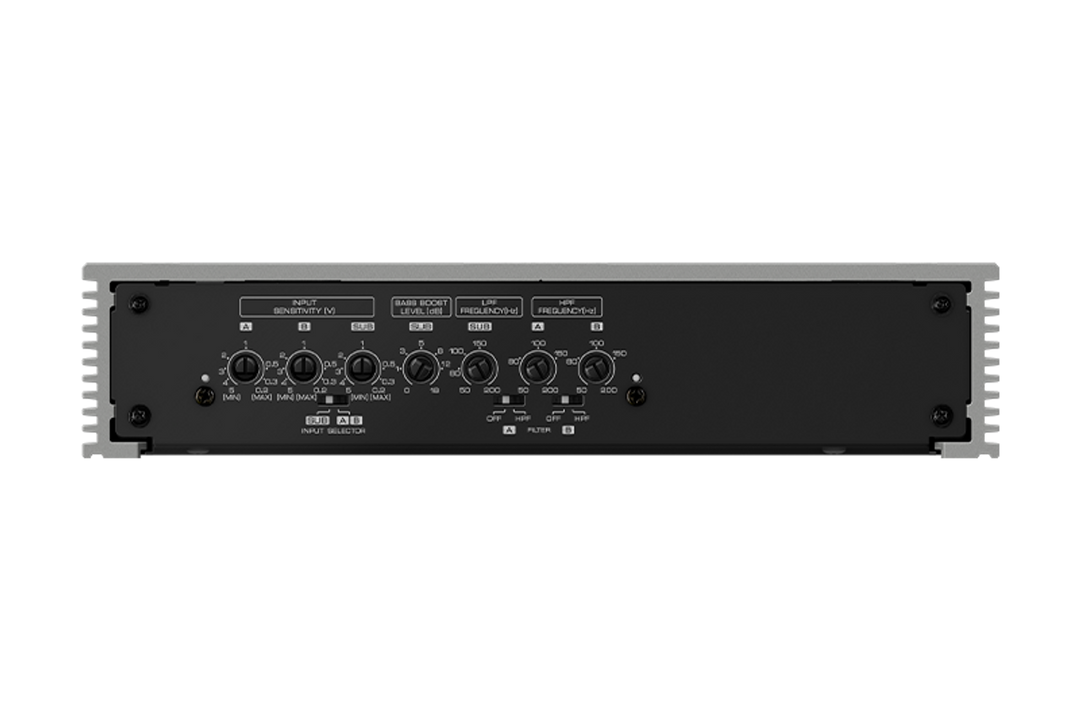

• Variable low pass filter
• Bass boost
• Optional wired remote ready

Features:

• Speaker level input
• Signal sensing turn on
• Variable low pass filter
• Infrasonic filter
• Bass boost
• Optional wired remote ready

Specifications:

• Max Power: 1600 W
• RMS Power output (4 Ω): 50 W x 4 + 300 W
• RMS Power output (2 Ω): 75 W x 4 + 500 W
• RMS Power output bridged: 150 W x 2 (bridged) + 300 W
• Dimensions: (W) 9 - 3 / 4" x (H) 2 - 1 / 16" x (D) 6 - 5 / 8"
• Weight: 4.6 lbs (2.1 kg)
