Kenwood Excelon X503-1: 500 W RMS Monoblock Amplifier

About the Kenwood Excelon X503-1: 500 W RMS Monoblock Amplifier

Output coil through magnetic shield:

Prevents magnetic flux from radiating from the subwoofer's coil, resulting in reduced noise and enhanced sound quality.

High quality capacitors:

PMLCAP's (polymer multi layer capacitors) are utilized in the LC filter circuits to decrease distortion, ensuring clear detail for a truer to life sound.

Infrasonic filter (ISF):

When the infrasonic filter switch is turned on, the Amplifier cuts off the low frequencies below 25 hz, which makes the Amplifier's Power supply and output devices more efficient, providing clear bass output.

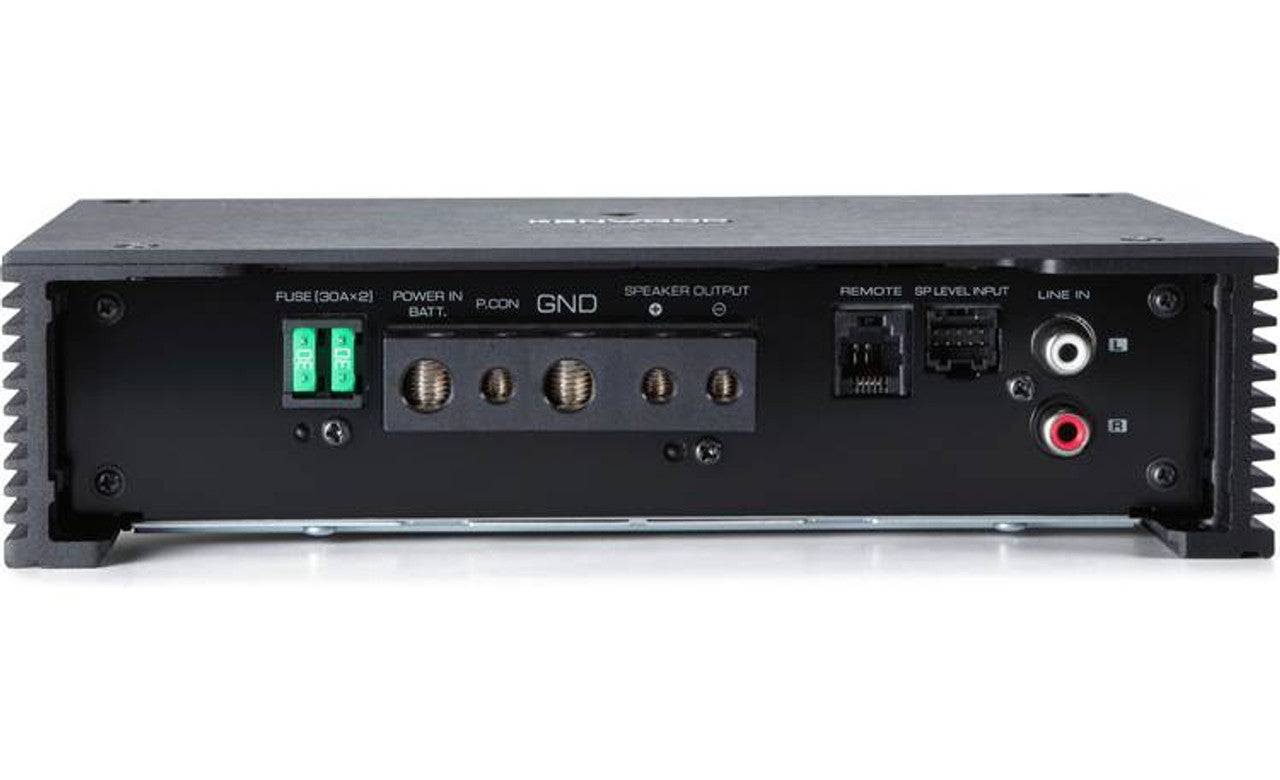

1 side connection:

All terminals and connections are on one side for easier installation and a cleaner look.

Speaker level input harness:

Speaker level input harness is included to connect to speaker wires from factory installed receivers.

Wired level control included:

The wired remote level control allows you to easily adjust the subwoofer volume.

Product highlights:

• Maximum power 1000 W
• RMS power: 300 W (4 Ω)
• RMS power: 500 W (2 Ω)
• Size (") (W) 8 - 3 / 8" x (H) 2 - 1 / 16" x (D) 5 - 7 / 8"
• Variable low pass filter
• Bass boost
• Infrasonic filter
• Wired remote ready

Specifications:

• Mono subwoofer Amplifier
• CTA 2006 compliant
• Class-D amplifier design
• Variable low pass filter: 50 - 200 Hz, 24 dB / octave
• Variable bass boost: 0 - 18 dB at 40 hz
• Selectable subsonic filter: 25 hz, 24 dB / octave
• Wired remote level control included
• Preamp and speaker level inputs
• Wiring and hardware not including Amplifier
• Fuse rating: 30 A x 2
• Dimensions (W x H x D): 8 - 3 / 8" x 2 - 1 / 16" x 5 - 7 / 8"

What's in the box:

• Mono subwoofer Amplifier (two installed 30 A mini ATC fuses)
• 7" speaker level input harness
• Remote level control
• 19.5 FT remote level control cable (RJ-14 connectors on both ends)
• Hex nut
• Flat washer
• Four 0.5" screws
• 2 allen keys (4 & 2.5 mm)
• Instruction manual (English / Spanish / French)
• Warranty information
