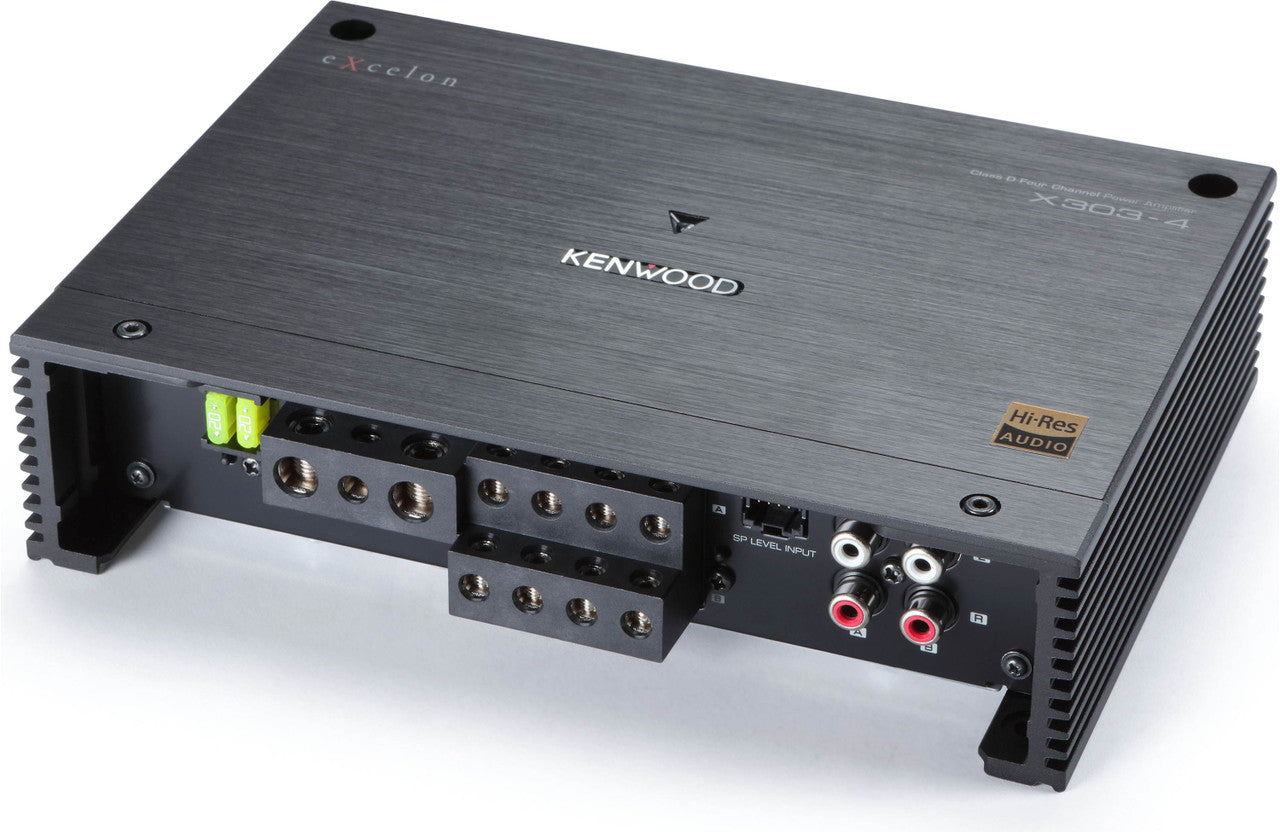

Kenwood Excelon X303-4: 4-Channel 50 W RMS x 4 Car Amplifier

About the Kenwood Excelon X303-4: 4-Channel 50 W RMS x 4 Car Amplifier

Rich and immersive high resolution audio:

High resolution audio is high quality sound that exceeds CD standard.  High resolution audio captures and beautifully expresses all the details of your favorite music.  Through ultra high and low frequencies, immerse yourself in a rich and high quality sonic experience.

Output coil and magnetic shield:

Prevents magnetic flux from radiating from the subwoofer's coil, resulting in reduced noise and enhanced sound quality.

High quality capacitors:

PMLCAP's (polymer multi layer capacitors) are utilized in the LC filter circuits to decrease distortion, ensuring clear detail for a truer to life sound.

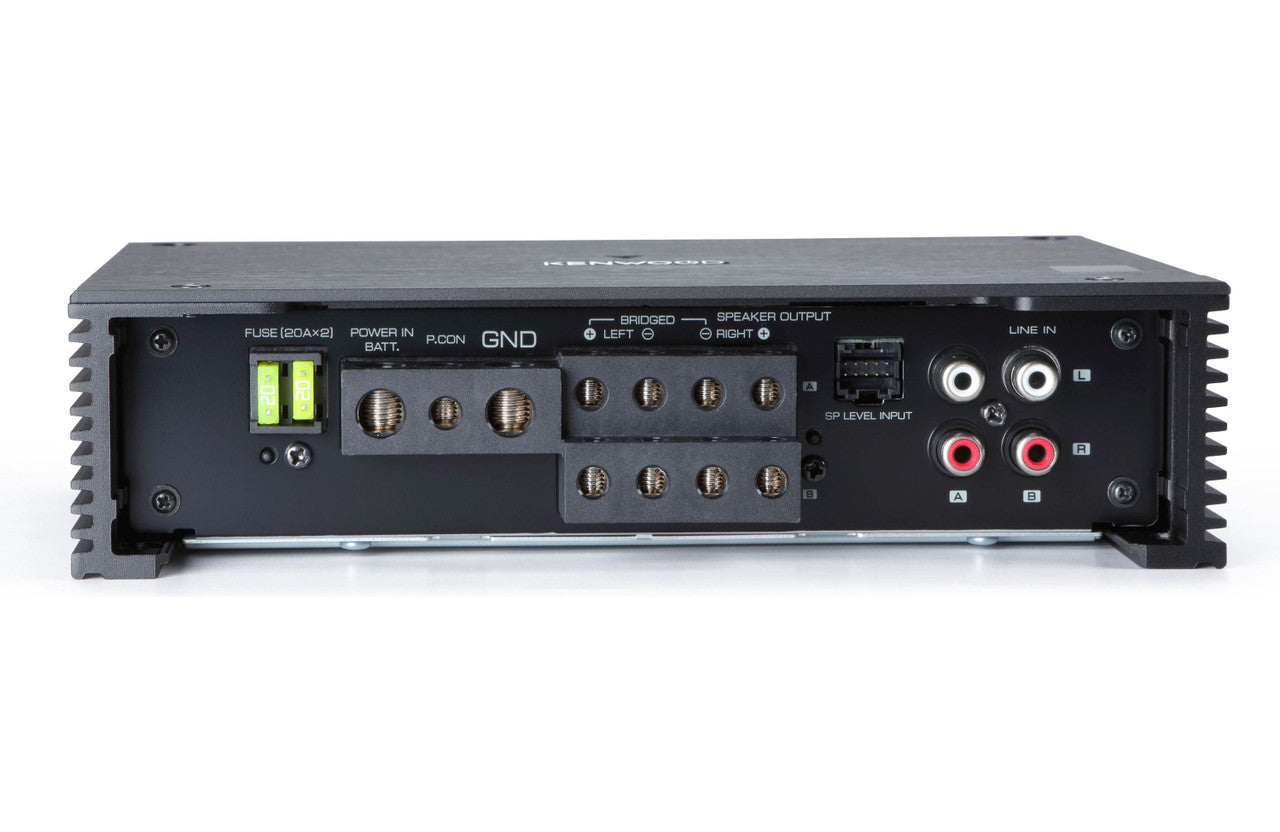

1 side connection:

All terminals and connections are on 1 side for easier installation and a cleaner look.

Speaker level input harness:

Speaker level input harness is included to connect to speaker wires from factory installed receivers.

Product highlights:

• Maximum power: 600 W
• RMS power: 50 W x 4 (4 Ω), 75 W x 4 (2 Ω)
• Size (W x H x D): 8 - 3 / 8 x 2 - 1 / 16 x 5 - 7 / 8"
• High resolution audio certified
• Variable low pass filter
• Bass boost

Specifications:

• 4-Channel Car Amplifier
• 50 W RMS x 4 at 4 ohms
• 75 W RMS x 4 at 2 ohms
• 150 W RMS x 2 bridged at 4 ohms
• CTA 2006 compliant
• Class-D Amplifier technology
• Frequency response: 20 - 50,000 hz
• High resolution audio certified
• Variable high and low pass filters (50 - 200 hz, 12 dB / octave)
• Variable bass boost on B-Channels (0 - 18 dB at 40 hz)
• Preamp and speaker level inputs
• Speaker wire adapters included
• Speaker level inputs can handle up to 12 V (36 W)
• Signal sensing turn on through speaker level input
• Wiring and hardware not including Amplifier
• 8 gauge power and ground leads recommended
• Fuse rating: 20 A x 2
• Dimensions (W x H x D): 8 - 3 / 8 x 2 - 1 / 16 x 5 - 7 / 8"

What's in the box:

• 4-Channel Amplifier (2 installed 20 A mini ATC fuses)
• 7" speaker level input harness
• Four 0.5" screws
• Two allen keys (4 & 2.5 mm)
• Instruction manual (English / Spanish / French)
• Warranty information
