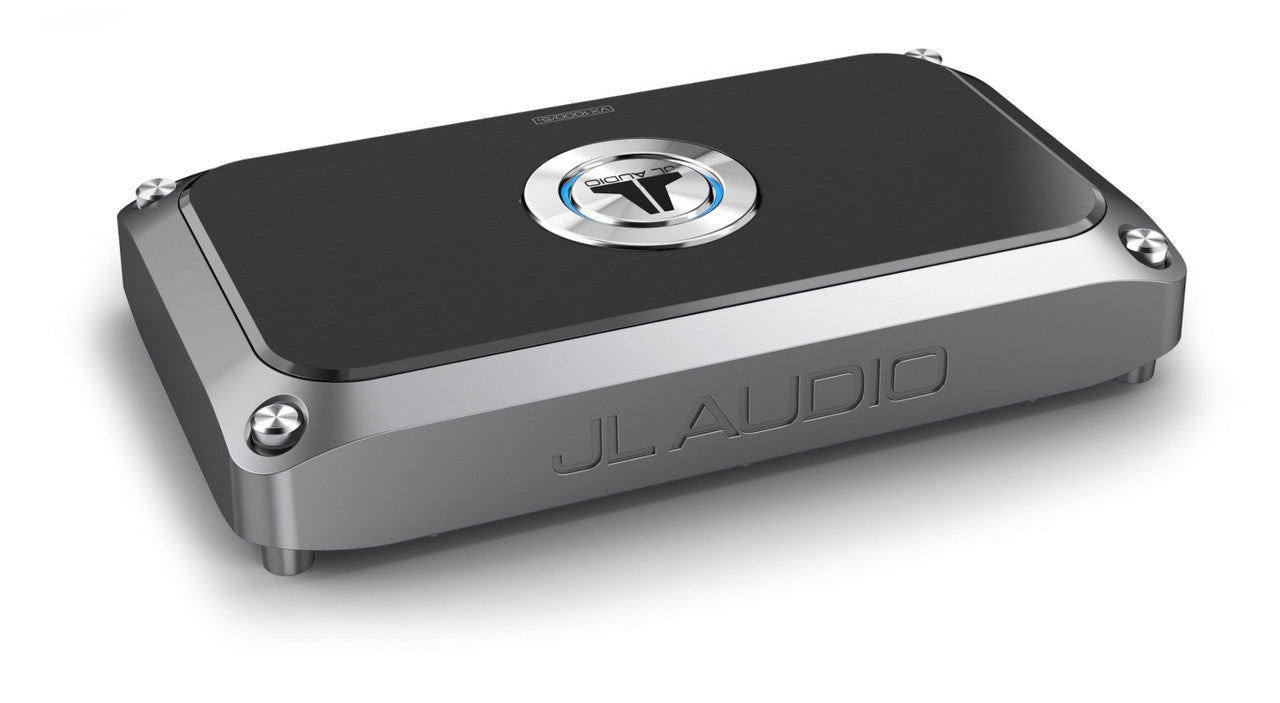

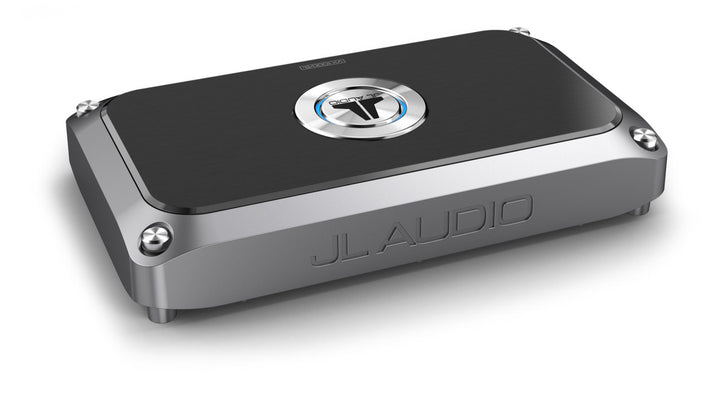

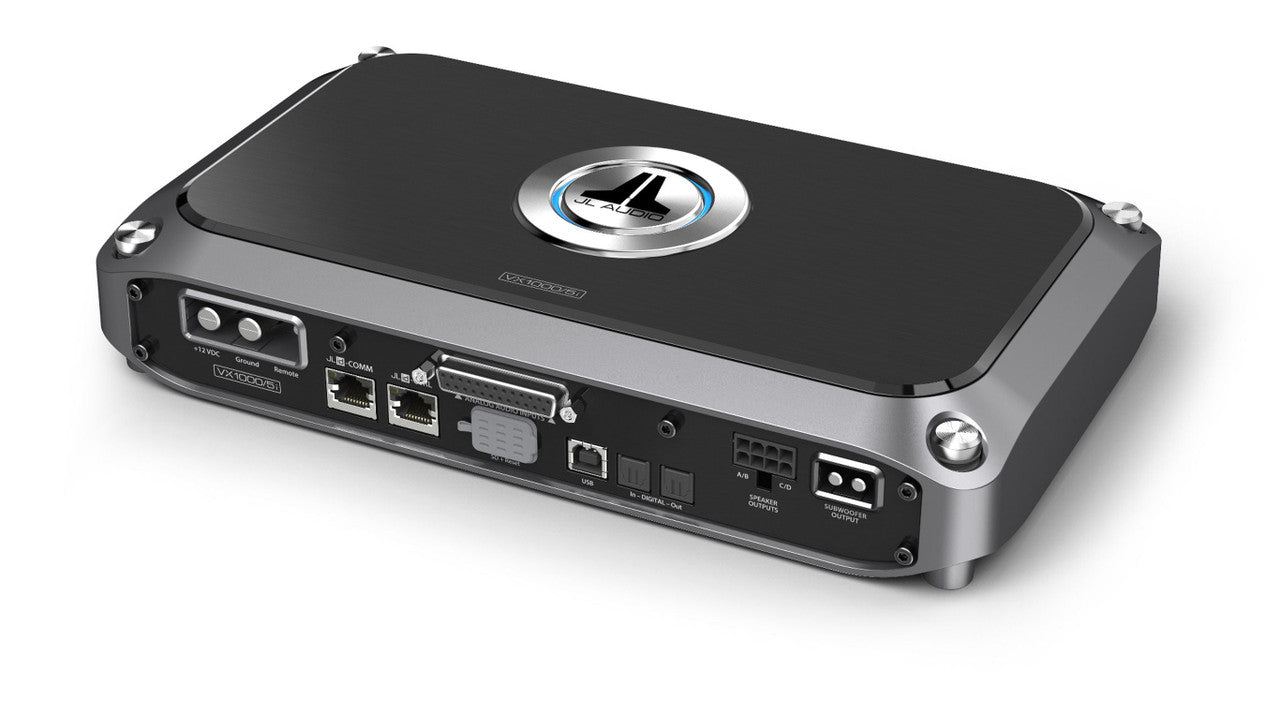

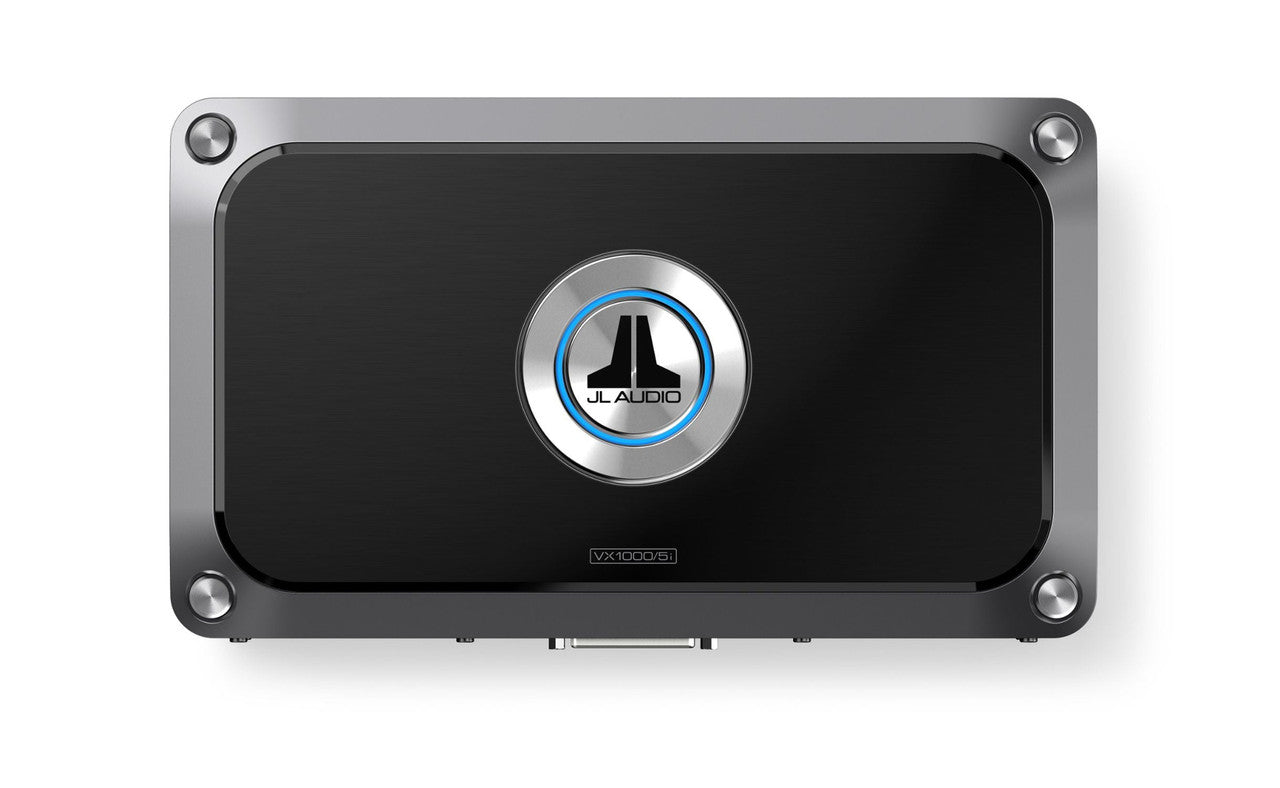

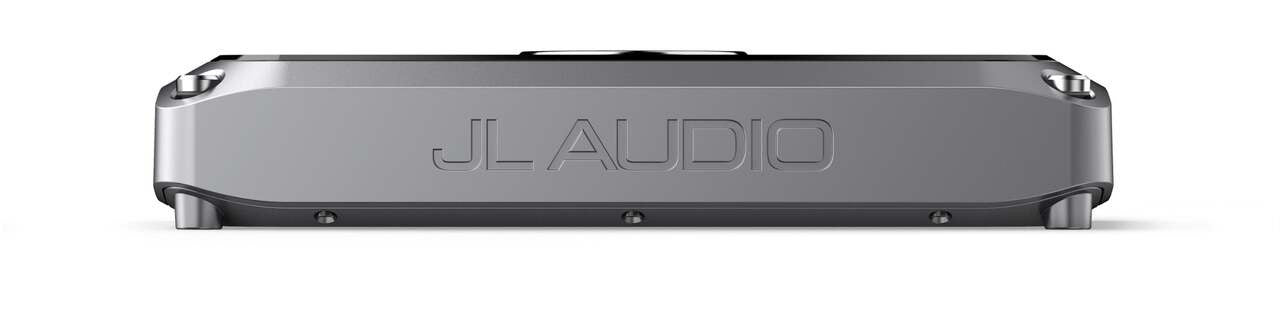

JL Audio VX1000 / 5I: 75 W RMS x 4 + 600 W RMS x 1 5-Channel Car Amplifier
About the JL Audio VX1000 / 5I: 75 W RMS x 4 + 600 W RMS x 1 5-Channel Car Amplifier
Unprecedented, onboard DSP tuning power!, 2nd generation NEXD2 switching Amplifier technology, ultra versatile analog and digital inputs / outputs, Jlid system command and control through networking capabilities, digital signal processing:
Designed to simplify great audio, every VXI Amplifier combines our advanced NEXD2 switching Amplifier technology through an integrated, full featured digital signal processor.
Employing our 2nd generation NEXD2 Amplifier technology, the VX1000 / 5I efficiently powers a complete audio system. It can drive 4 main speakers of 75 W x 4 @ 4 ohms while also powering a Subwoofer of up to 600 W @ 2 ohms. Bridging the main Channels converts it into a very powerful, 3-Channel system Amplifier of up to 200 W x 2 @ 4 ohms on the main Channels and 600 W @ 2 ohms on the Subwoofer Channel.

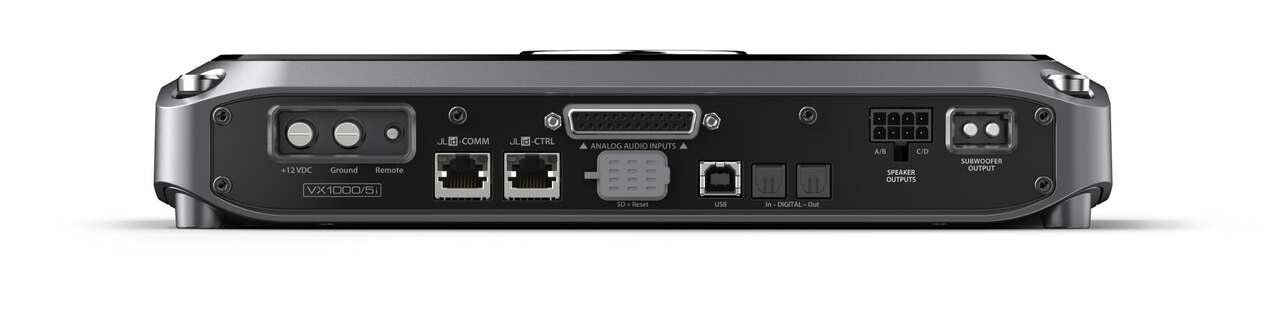

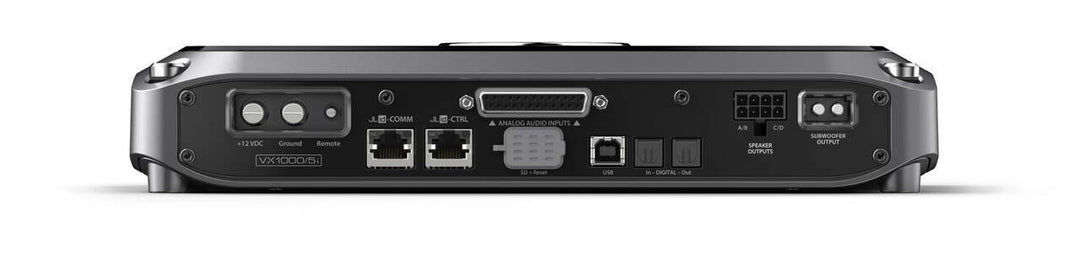

The NEXD2 full range technology in the main Channels of this Amplifier is DSP controlled and features a reduced loop area design utilizing directfet outputs for outstanding fidelity, very low noise and exceptional efficiency. The Subwoofer Channel features an optimized low frequency variant of the NEXD2 technology. The Amplifier chassis is ultra compact, through all connections on one side, to greatly simplify installation into tight spaces.
Instead of traditional control knobs and switches, all Amplifier adjustments and DSP functionality are configured via a compatible external device (PC, tablet or smartphone), through the appropriate JL Audio tun software application installed.
Amplifier includes: power connector (for 2 AWG wire), analog input / preout harness, speaker output harness, Subwoofer output connector, 6 FT A / B USB cable
Features:
- Powerful DSP permits optimizing each channel’s timing, frequency response and output levels, for exceptional sound quality.
- Tun software delivers fast and easy setup, at your fingertips. Make all adjustments through a clear interface. Free tun software is available for computers and most handheld devices.
- Advanced, high speed switching technology delivers reference grade power and efficiency.
- DSP synchronized power supply and output channels produce world class sound quality through very low noise and distortion.
- Differential balanced analog inputs accept speaker level signals up to 16 V RMS, including those from factory systems. Delivers outstanding noise rejection to prevent alternator whine and other noises.
- Optical digital (toslink) Inputs permit direct connection of S / PDIF digital sources, bypassing A / D converter. Accepts up to 24 bits / 192 kHz input.
- Analog and digital preouts (pass through or fully configurable): RCA preouts (4V RMS maximum) and optical (toslink) output at 24 bits / 96 kHz
- Automatic turn on options via signal sensing or DC offset sensing

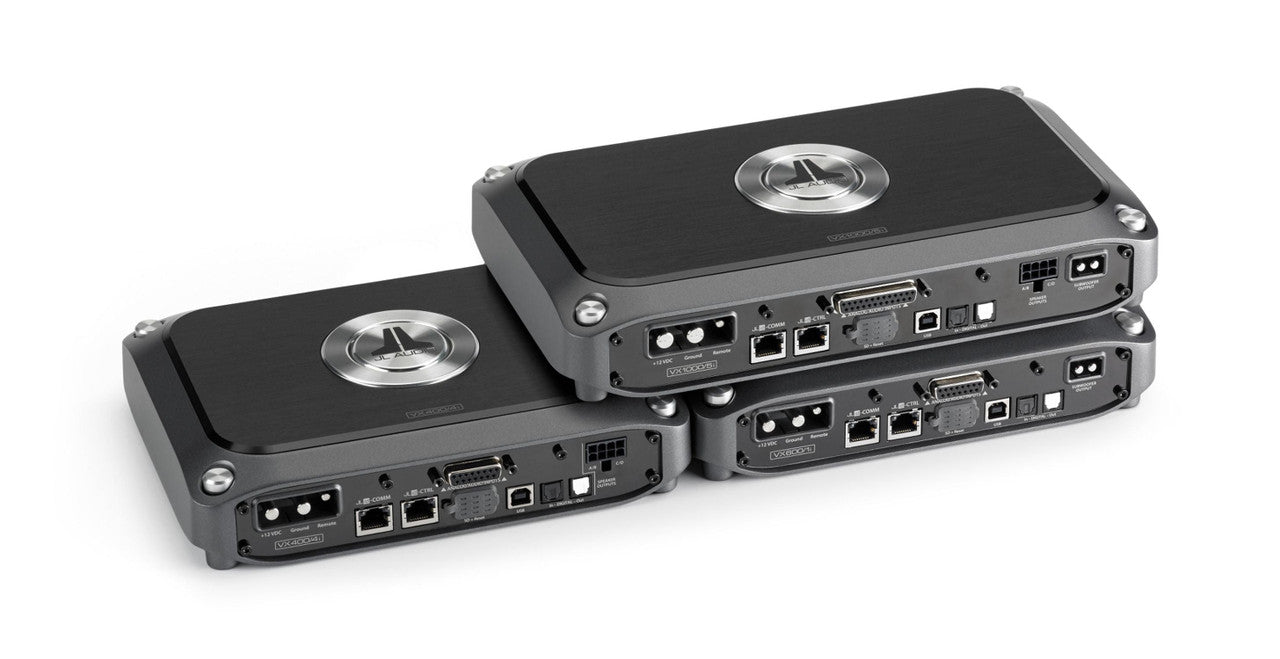

- Proprietary JL Audio protocol provides control interface and all communication for VXI Amplifiers and optional Jlid accessories, including: DRC-100 / DRC-205 (digital remote controllers): offers convenient DSP preset selection and level adjustments from the driver's seat. VXI-BTC Bluetooth communicator: adds wireless connectivity for Amplifier configuration from a compatible IOS or android device. VXi hub optical network hub: provides network connectivity for up to 6 VXI Amplifiers, allowing full system DRC control and preset selection. Up to 2 VXi hubs can be daisy chained to control up to 10 VXI Amplifiers.
Specifications:
Rated continuous (RMS) power @ 14.4 V
- Main Channels, and bridged @ 4 Ω 75 W RMS x 4; @ 2 Ω 100 W RMS x 4; 4 Ω 200 W RMS x 2
- Subwoofer Channel @ 4 Ω 400 W RMS x 1; @ 3 Ω 500 W RMS x 1; @ 2 Ω 600 W RMS x 1; @ 1.5 Ω N / A
Rated continuous (RMS) power @ 12.5 V
- Main Channels, bridged @ 4 Ω 60 W RMS x 4; @ 2 Ω 90 W RMS x 4; @ 4 Ω 180 W RMS x 2
- Subwoofer Channel @ 4 Ω 360 W RMS x 1; @ 3 Ω 480 W RMS x 1; @ 2 Ω 600 W RMS x 1; @ 1.5 Ω N / A
General specifications:
- Frequency response (main Channels): 12 hz - 21 kHz (+0, -1dB)
- Frequency response (subwoofer Channel): 12 hz - 1 kHz (+0, -1dB)
- S / N ratio, referred to highest rated power (analog inputs, main Channels): 99 dB (A weighted, 20 hz - 20 kHz noise bandwidth)
- S / N Ratio, referred to 1 W (analog inputs, main Channels): 80 dB (A weighted, 20 hz - 20 kHz noise bandwidth); 72 dB (A weighted, 20 hz - 20 kHz noise bandwidth)
- S / N Ratio, referred to highest rated power (digital Inputs, main Channels): 100 dB (A weighted, 20 hz - 20 kHz noise bandwidth); 99 dB (A weighted, 20 hz - 20 kHz noise bandwidth)
- S / N Ratio, referred to 1 W (digital inputs, main Channels): 81 dB (A weighted, 20 hz - 20 kHz noise bandwidth); 73 dB (A weighted, 20 hz - 20 kHz noise bandwidth)
- Damping factor @ 2 Ω: > 50 / 50 hz; @ 4 Ω: >150 / 50 hz
- THD+N @ rated power (main and subwoofer Channels): < 1% @ 2 Ω per Channel
- Input voltage range @ RCA inputs: 200 mV - 16 V RMS
- Minimum copper power / ground wire gauge: 4 AWG wire
- Fuse rating: 80 A (AFS, AGU or maximum fuse)
Other features:
- 5-Channel Car Amplifier
- 75 W RMS x 4 + 400 W RMS x 1 (at 4 ohms); 100 W RMS x 4 + 600 W RMS x 1 (at 2 ohms); 200 W RMS x 2 bridged at 4 ohms + 600 W RMS x 1 at 2 ohms
- Class-D Amplifier design through NEXD2 switching Amplifier technology
- 24 bits 96 kHz digital processing
- DSP adjustments and settings made through JL Audio's tun app (PC and mac) via USB, via Bluetooth (tablets and phones) through BTC Bluetooth option
- Input routing and mixing
- Adjustable gain controls through clip indication
- Fully adjustable high and low and band pass filters
- Selectable filter slopes (6, 12, 18, 24, 30, 36, 42, 48 dB / octave)
- 10 bands EQ
- Phase and polarity control
- Time alignment in 0.0 ms (1 / 8") increments
Connection features:
- Differential balanced inputs eliminate noise coming from your vehicle's electrical system
- Preamp and speaker level inputs (speaker wire to RCA adapter required for speaker level input)
- High level inputs, up to 16 V RMS (about 60 W)
- DC offset or signal sensing auto turn on eliminates need for remote lead
- 2 channel digital input and output (S / PDIF: up to 24 bits 192 kHz in, 24 bits 96 kHz out) and analog preamp output (4 V RMS)
- Jlid connections for optional network hub, Bluetooth communicator, and digital remote control
- USB connection for device running tun app (6 FT cable included)
- Wiring, fuse, and hardware not including Amplifier
- 4 gauge power and ground leads and an 80 A fuse recommended
- 11 - 5 / 16" W x 2 - 1 / 8" H x 6 - 11 / 16" D
What's in the box:
- 5-Channel Amplifier
- Power connector
- 14" analog input harness (25 pin D sub / 8 RCA)
- 18" ABCD speaker output harness
- Subwoofer output connector
- 18" speaker wire loom
- "Sub" wire label
- 6 FT USB cable (type A USB on one end and B on the other end)
- 4 corner caps and tool
- 2 silver thumb and black hex cap machine screws
- 2.5 and 3 mm hex wrench
- JL Audio logo badge
- Connection guide
- Registration card
