Alpine KTA-200M: Mono Power Pack Amplifier

The KTA-200M Mono Power Pack Amplifier produces 400 W of Alpine's exclusive dynamic peak Power for big subwoofer Power in a small space.

Through the highest performance value on the market, this Mono Power Amplifier provides an easy update path to add more bass to a sound system in vehicles that don't normally have the room for a traditional Amplifier.

Utilizing Alpine's exclusive dynamic peak Power (DPP) technology, the 200 W KTA-200M delivers bursts of Power to meet the peak demands of music, effectively rising to 400 W and then rolling back to maintain efficiency.

The new voltage adapting circuit is included to maintain the maximum source signal level without clipping.

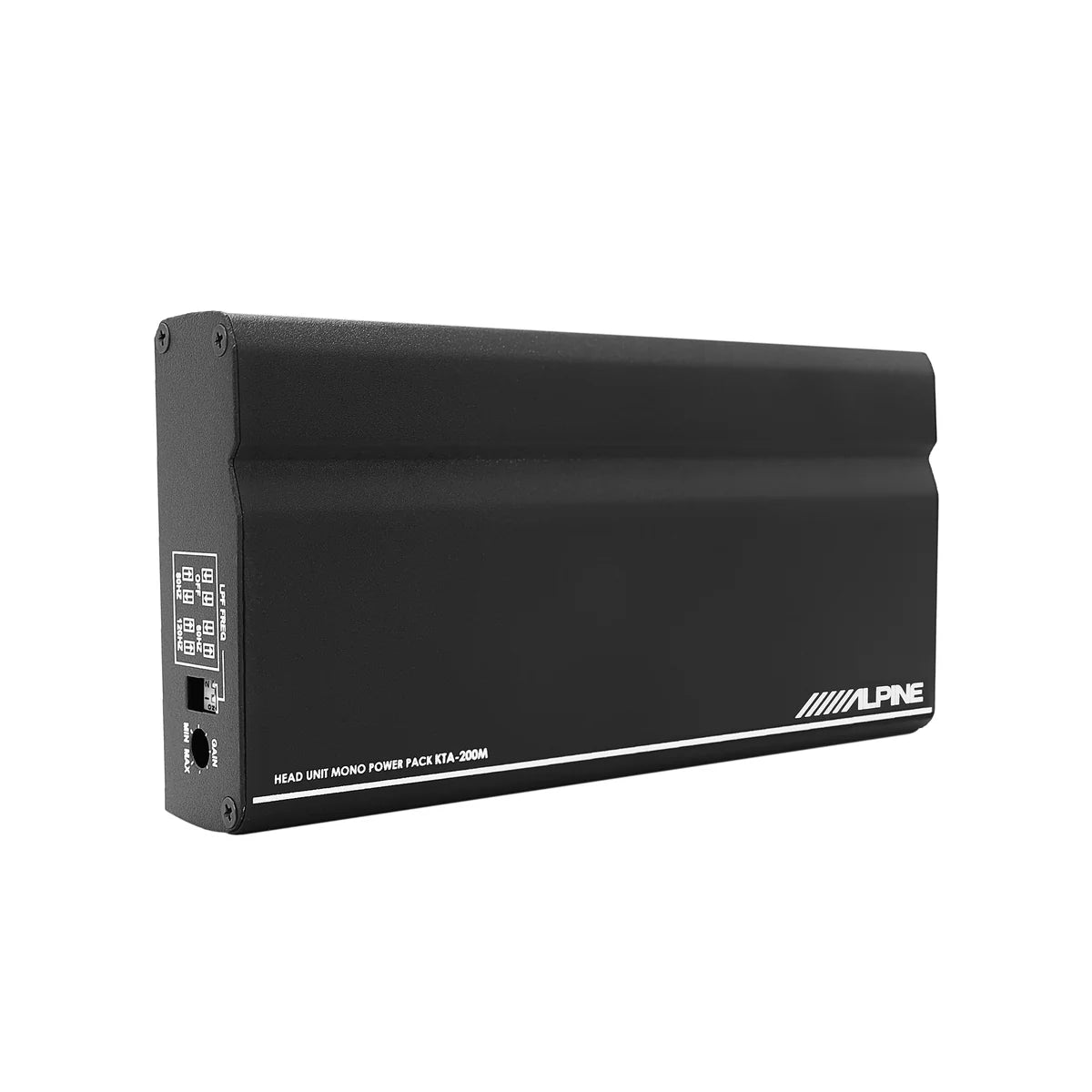

Through the compact, Power Pack design, the Amplifier can fit in hidden areas, like a glove box, under a seat, or mounted behind a receiver to optimize Power and space in the vehicle.

The KTA-200M mounts behind the ILX-W760 7" mechless audio / video receiver through Powerstack technology.

The KTA-200M has input capability to add the optional RUX-H01 remote bass control knob for quick bass adjustments when needed.

Features:

• Alpine's exclusive dynamic peak Power (DPP) technology
• THD + N ≤ 0.1 % (reference 10 W into 4 Ω)
• Single side 22 pins connector
• RCA inputs (low range=0.2 - 4 V)

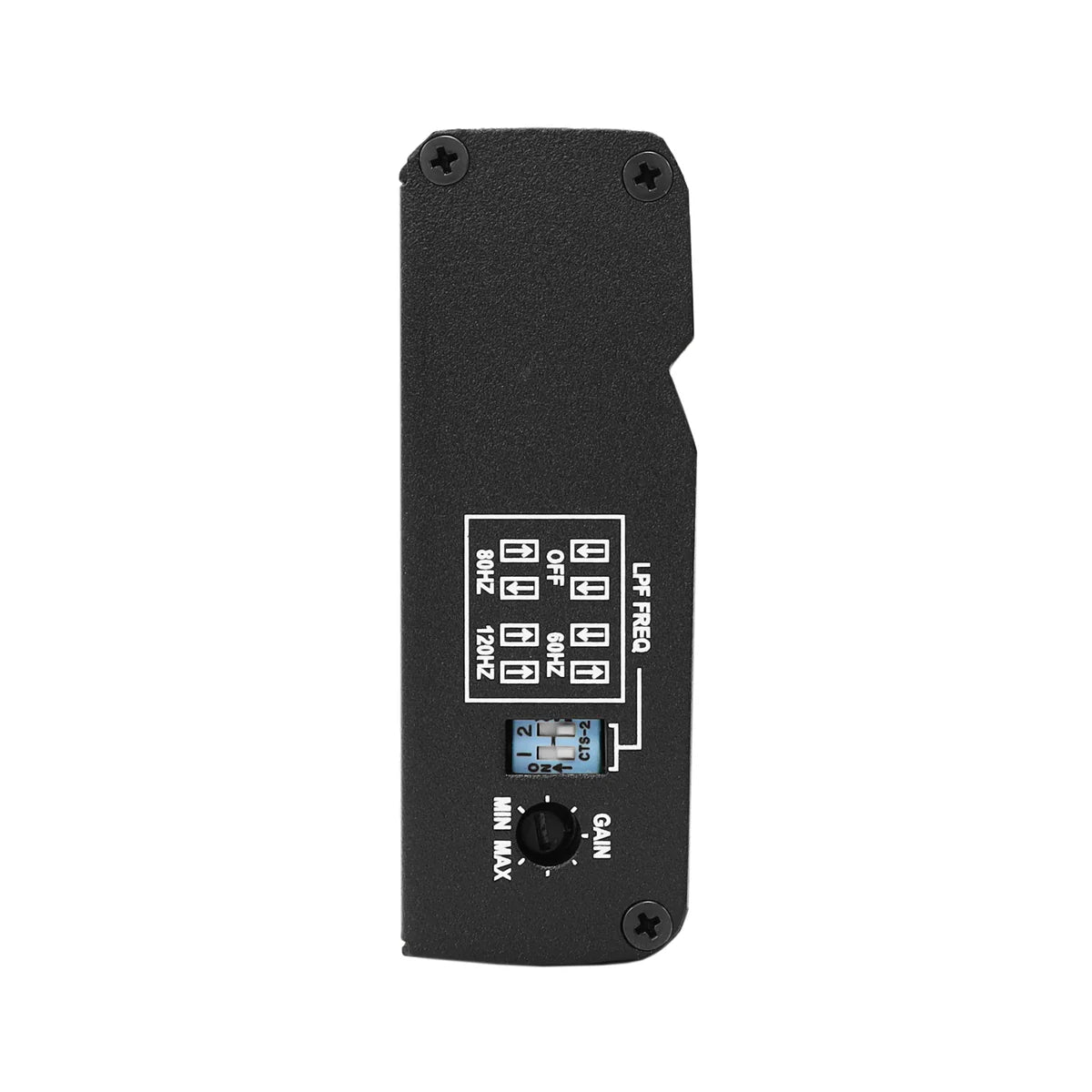

• Sound controls; crossovers, off / 60 / 80 / 120 hz  linkwitz  riley LP filter @ - 24 dB / octane (selectable); input gain setting (variable)
• Remote bass knob ready through the RUX-KNOB.2 (sold separately)
• Powerstack capable through the Alpine ILX-W650 (sold separately)
• Product dimensions: 7 x 1.5 x 3.5"
• Alpine's class-D Amplifier circuit including dynamic peak Power (DPP)
• 200 and 400 W x 1 RMS and DPP (4 and 2 Ω, 14.4 V, ≤ 1 % THD + N)

• S / N > 80 dB (reference 1 W into 4 Ω)
