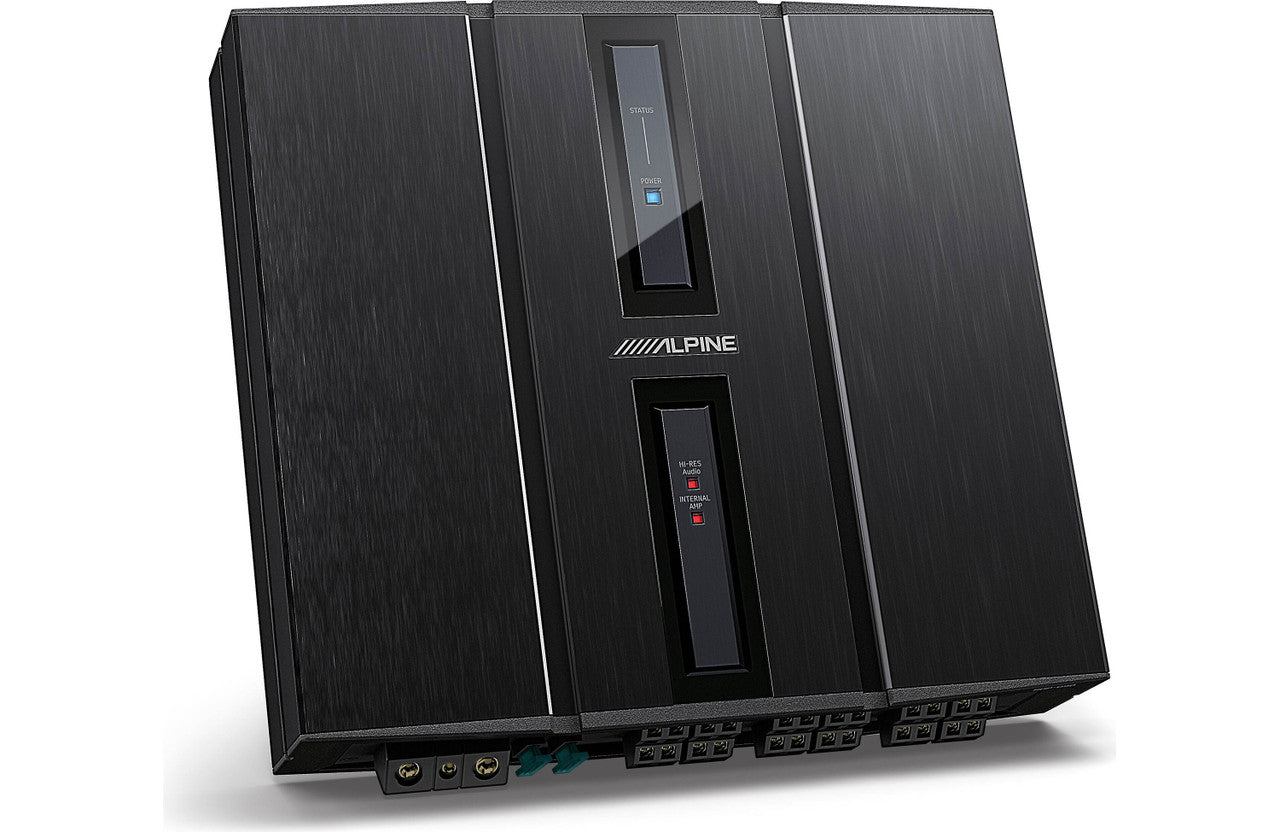

Alpine HDP-D90: 14-Channel High Resolution Status Digital Sound Processor Amplifier
- In stock, ready to ship
About the Alpine HDP-D90: 14-Channel High Resolution Status Digital Sound Processor Amplifier
Using expertise gleaned from over 5 decades of crafting premium car audio products and trickle down engineering and design from the ultra High Resolution Alpine F1 Status system technologies, the Alpine Status system features exceptional tooling and rich build quality for the best possible sound reproduction. Each component was hand picked from the Highest quality materials for the Highest in class audio performance, that when used as a complete system, can achieve 192 kHz / 24 bits playback.
System powerhouse:
Building a sound system while overcoming acoustical challenges in the interior environment of the vehicle is no easy feat, however, the HDP-D90 14-Channel High Resolution Digital Sound Processor Amplifier provides flexible system building and High Resolution processing power up to 192 kHz / 24 bits for an infallible listening experience.
Features:

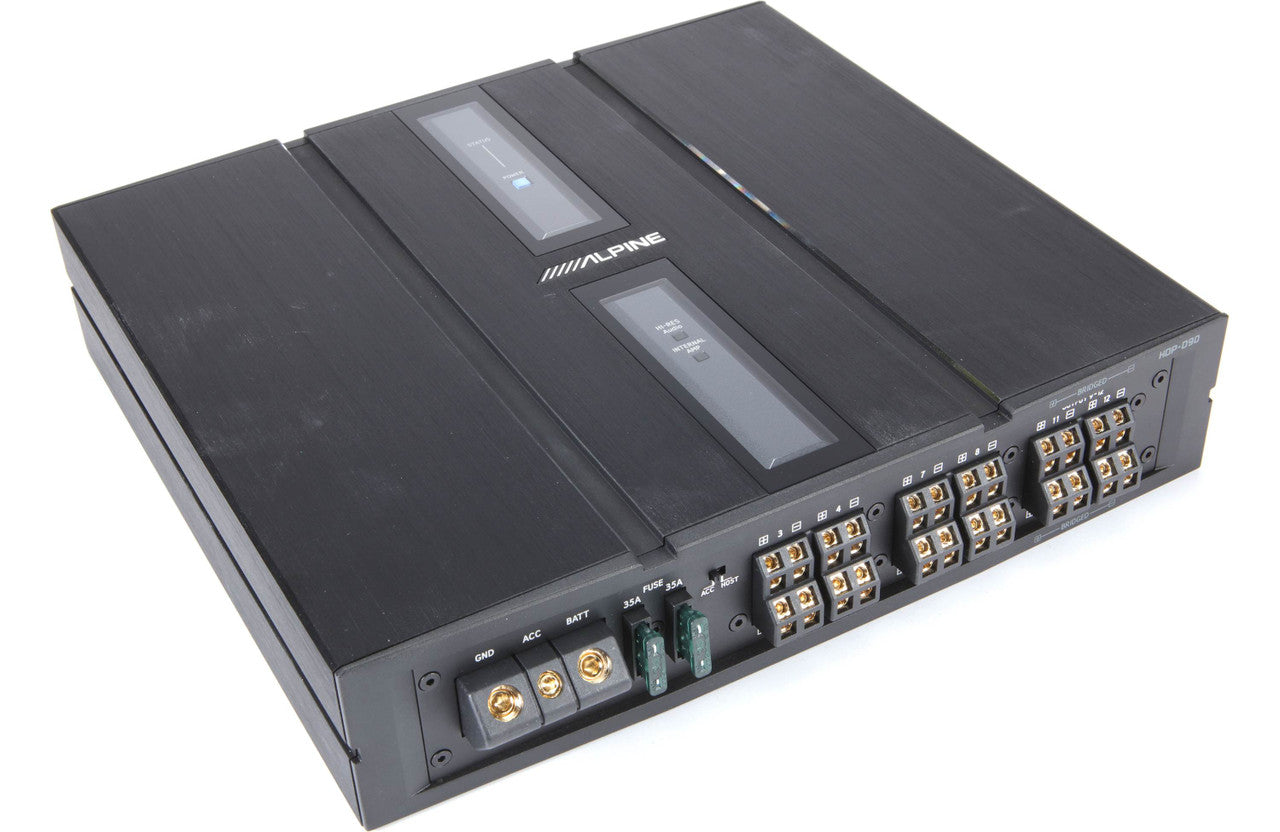

- 12-Channel car Amplifier through Digital Processing: 50 W RMS x 8 + 80 W RMS x 4 at 4 ohms; 50 W RMS x 8 + 160 W RMS x 2 bridged at 4 ohms
- Class-D Amplifier technology: 100 dB signal to noise ratio, 0.0 % distortion; frequency response: 20 - 40,000 hz
- Digital signal Processing (192 kHz, 32 bits sampling rate)
- Adjustments and settings made via Alpine's HDP DSP tuning app on your laptop or PC and mobile tuning app on your compatible Bluetooth device
- 31 band parametric and graphic EQ;
- High and low pass filters through selectable filter type, crossover point, and slope;
- Phase and delay adjustment controls
- 6 sound effects presets
More information:
- Optional wired remote controller (source, volume, bass, presets)

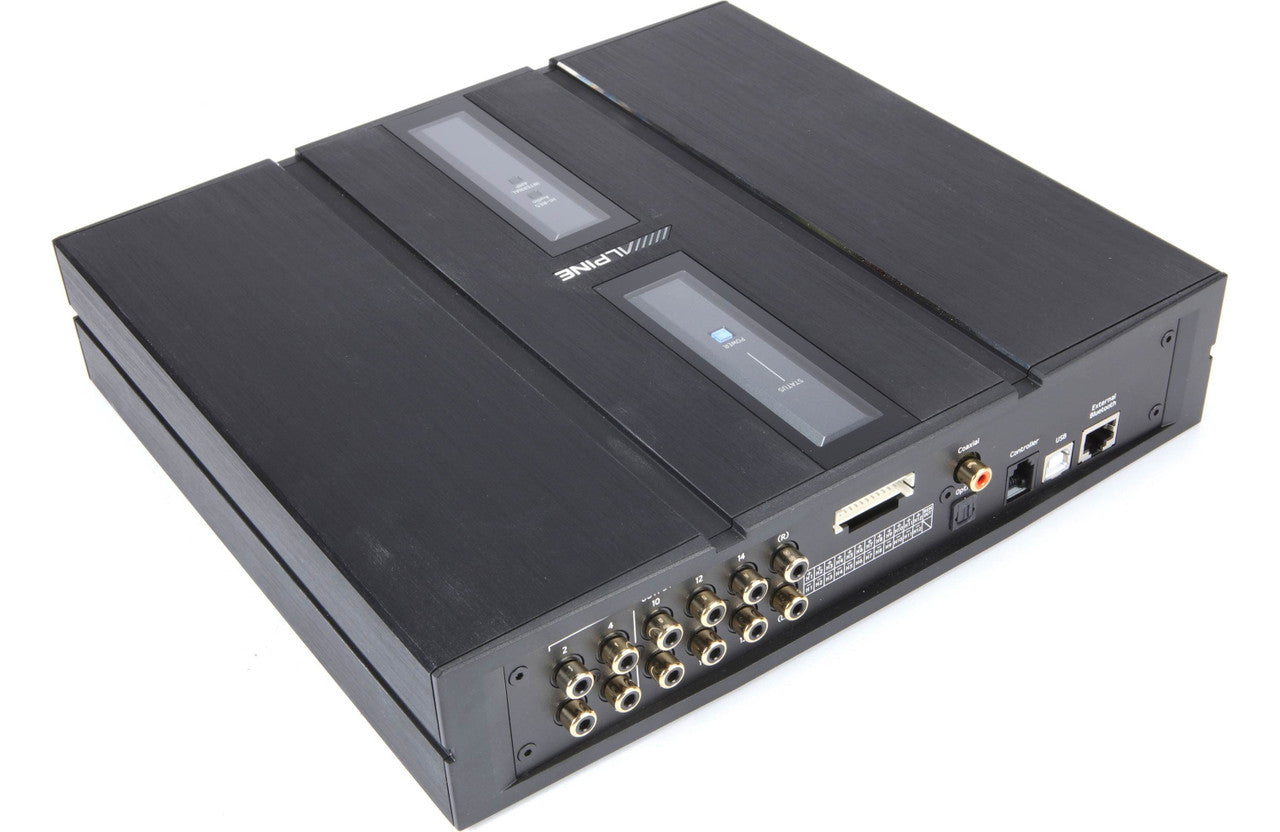

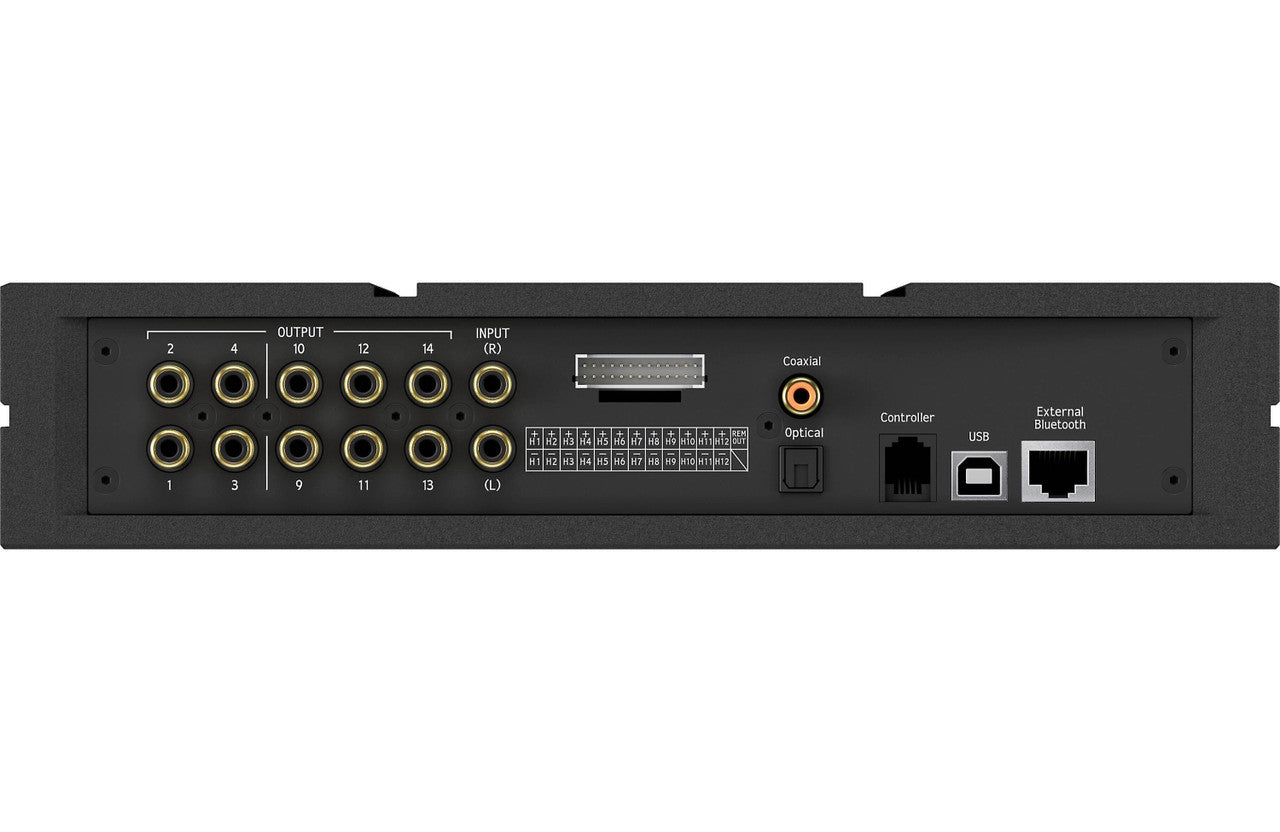

- 10-Channel processed RCA preamp outputs
- Matrix mixing assignable inputs:
- 12-channel High level harness (handles up to 26 VRMS)
- 2-Channel RCA
- Coaxial and optical digital
- Bluetooth streaming (receiver / dongle included)
- Wiring and hardware not including Amplifier
- 4 gauge power and ground wires recommended

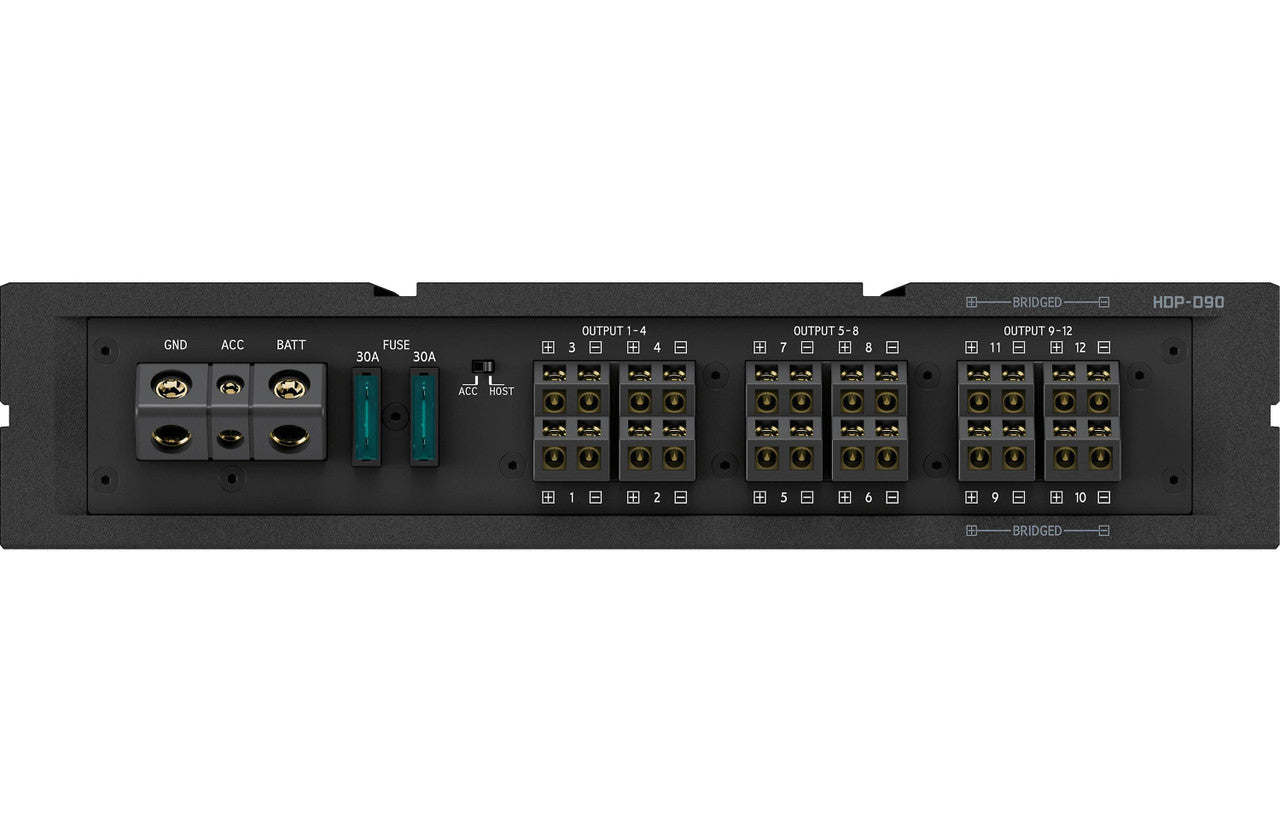

- Fuse rating: 30 A x 2
- Dimensions: 11" W x 2 - 5 / 16" H x 10.5" D
What's in the box:

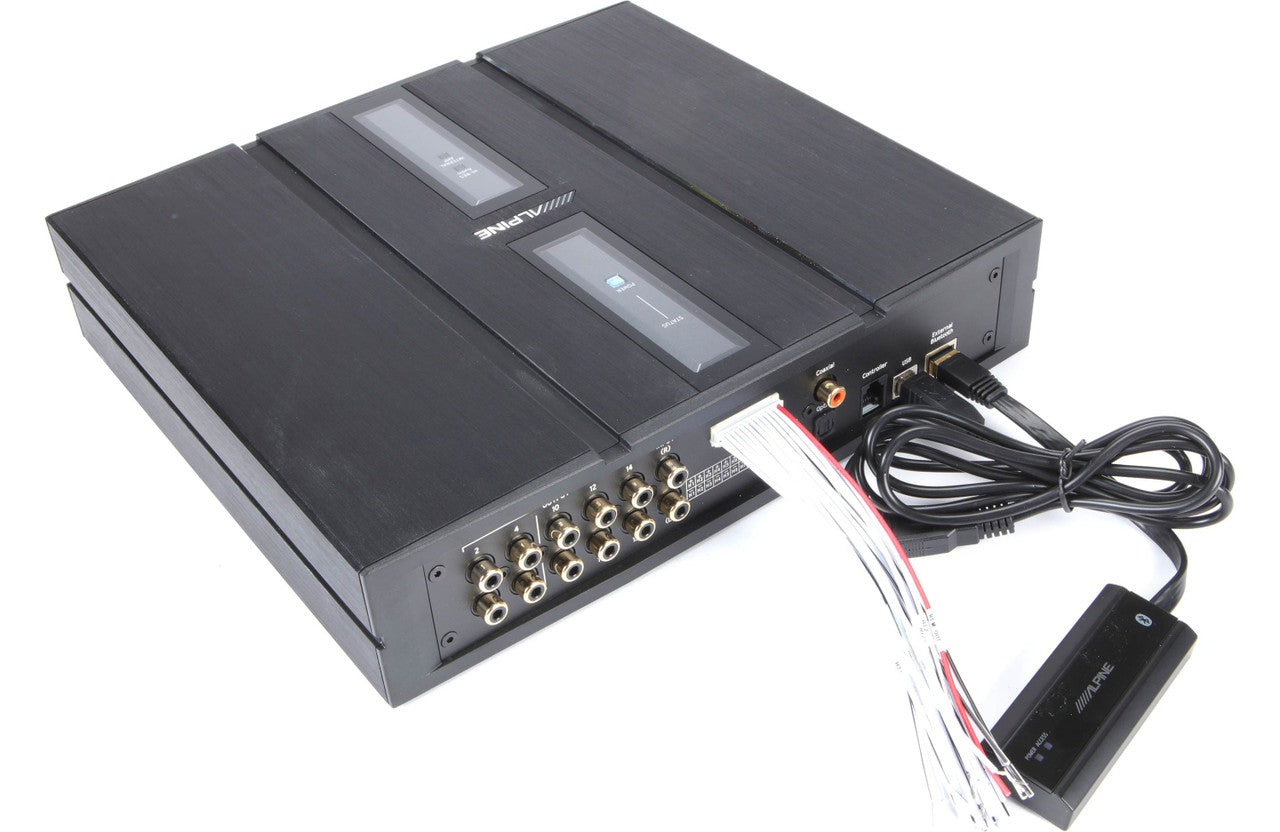

- 14-Channel audio Processor / Amplifier

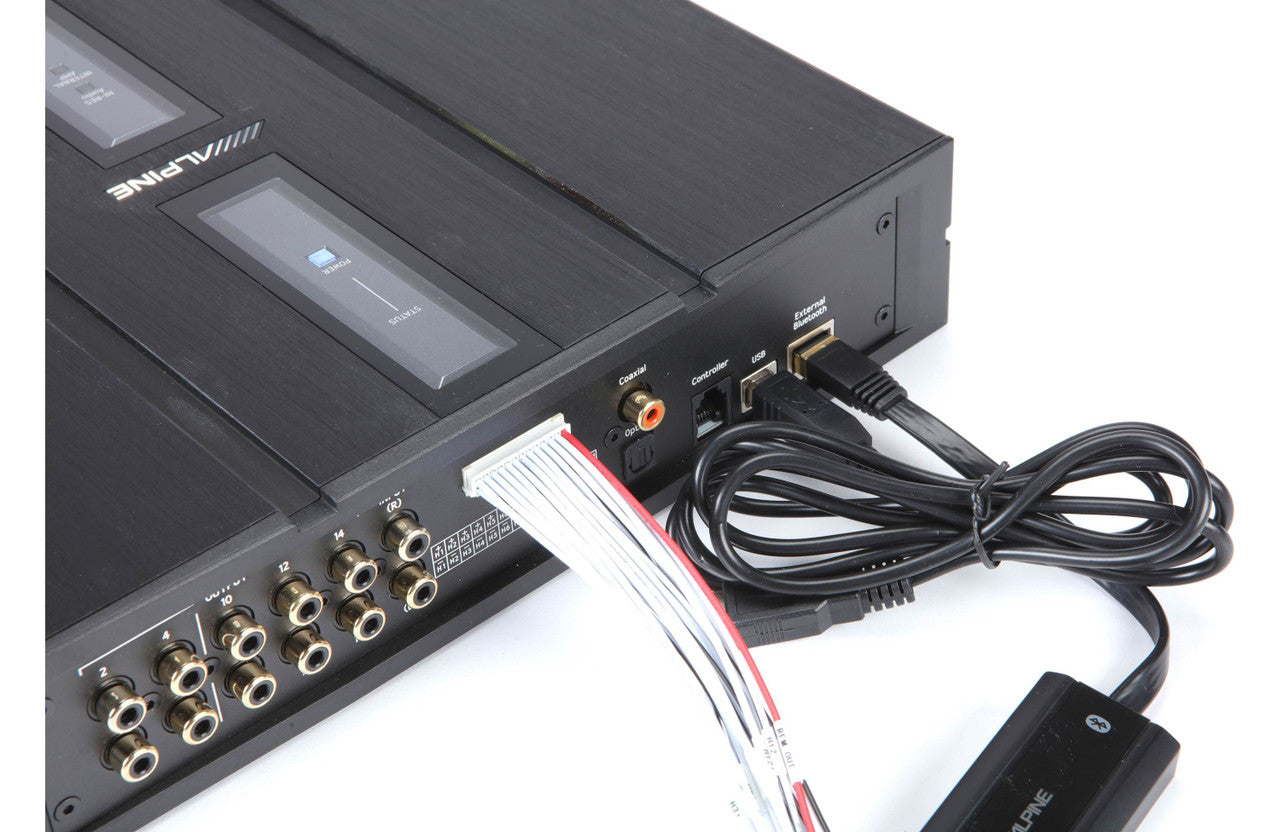

- 6" 26 pin input harness

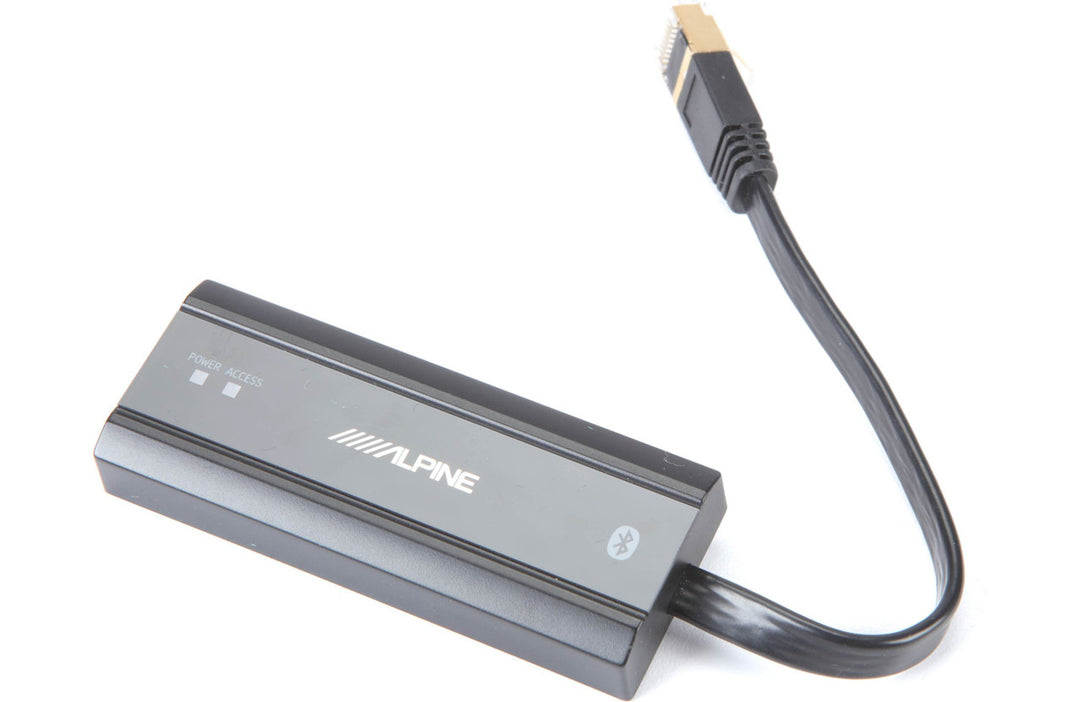

- Bluetooth module through attached 6" cable (RJ-45)

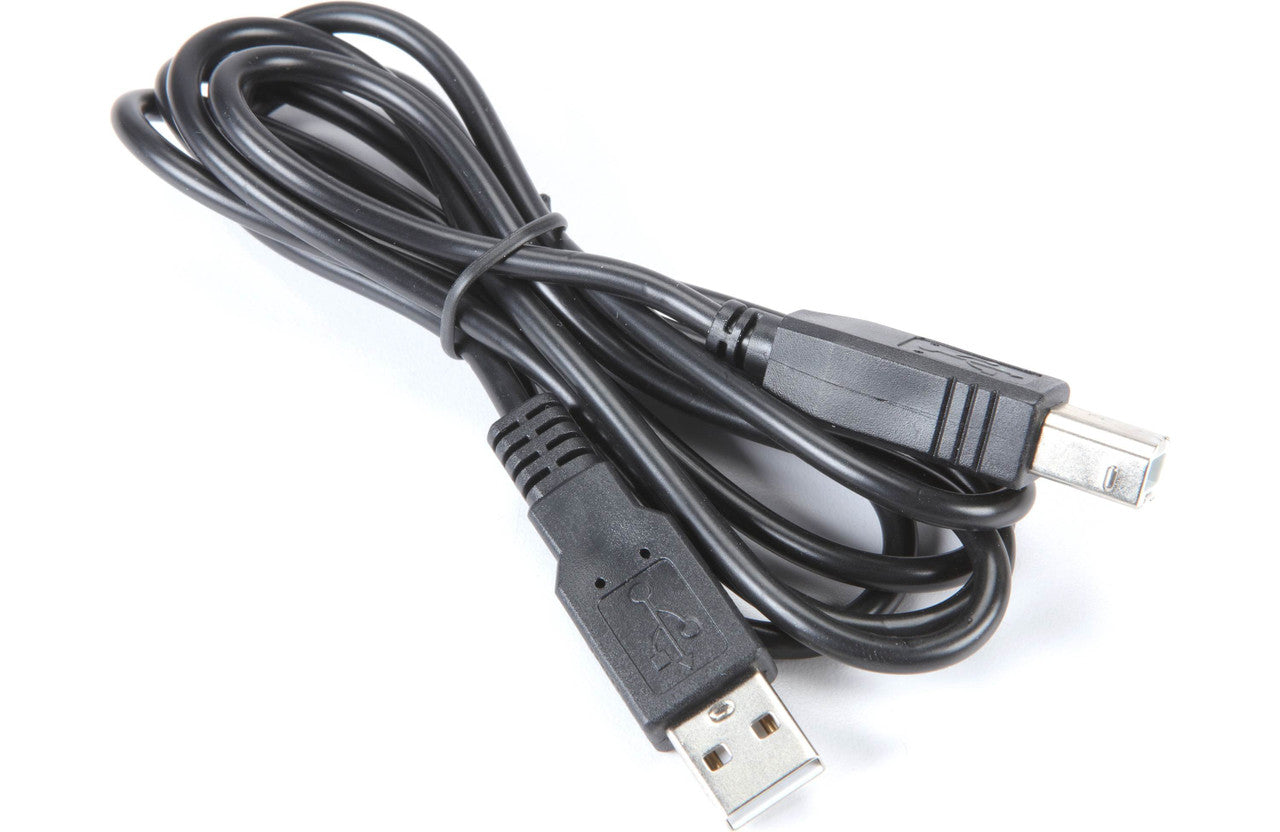

- 5 FT USB cable (type A to B)

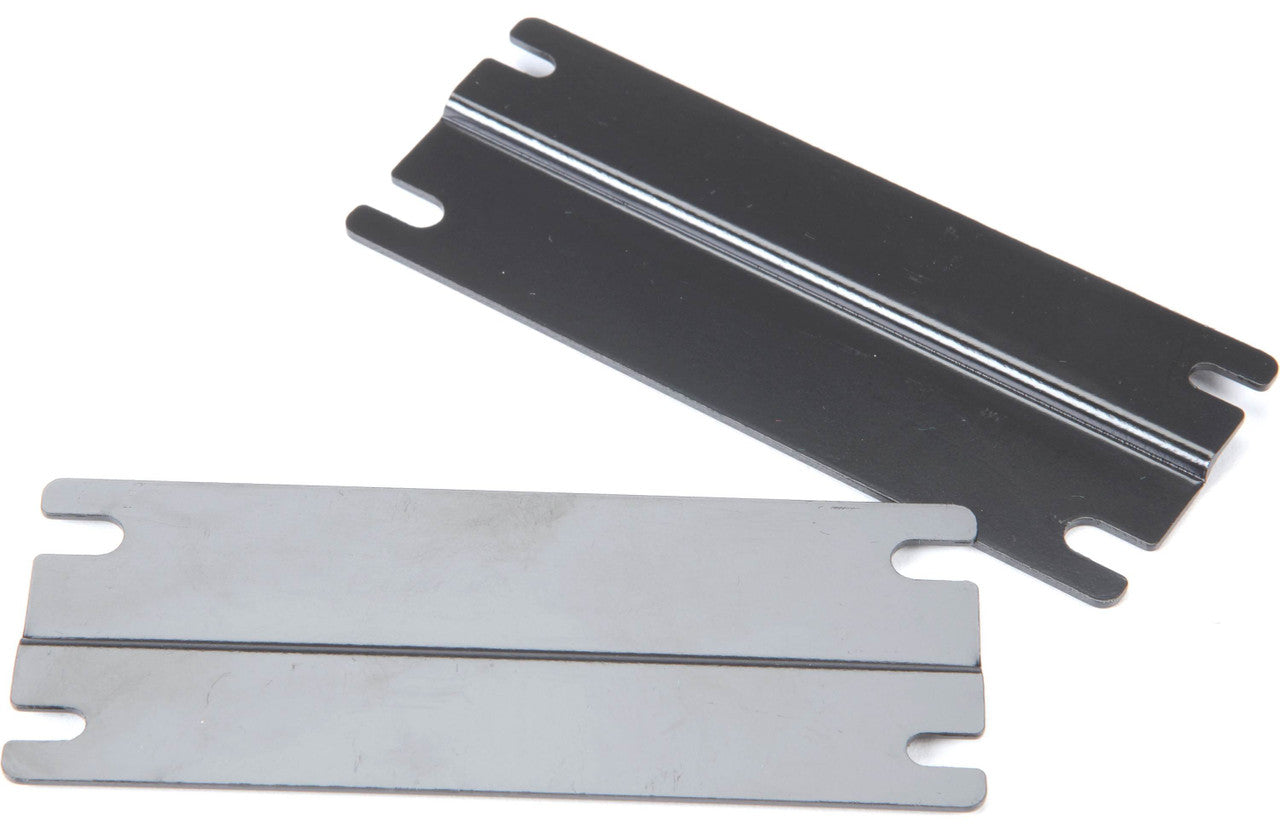

- 2 mounting brackets
- Four 3 / 4" and 6 mm machine and spare speaker output set screws
- 1 / 8" brass plug
- Quick reference guide
- Guide addendum
- Warranty and registration information
