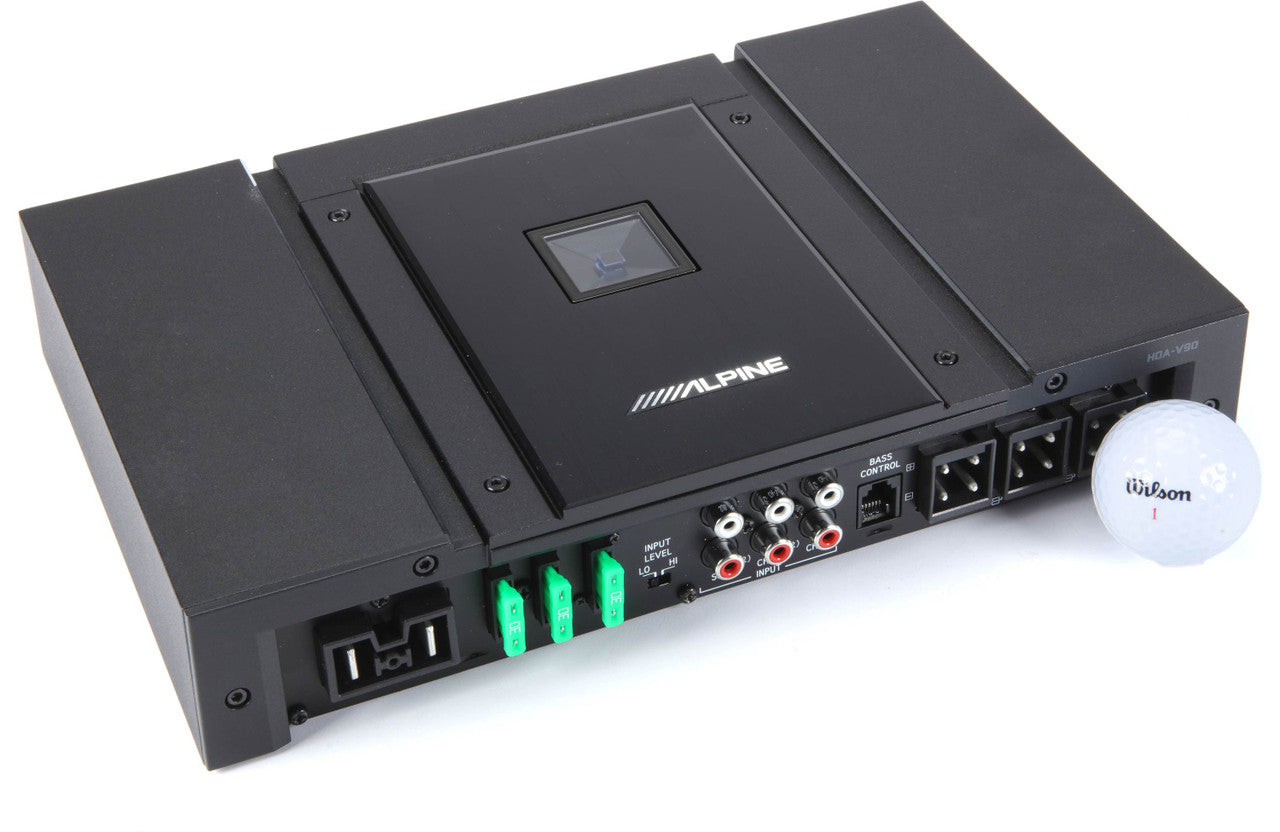

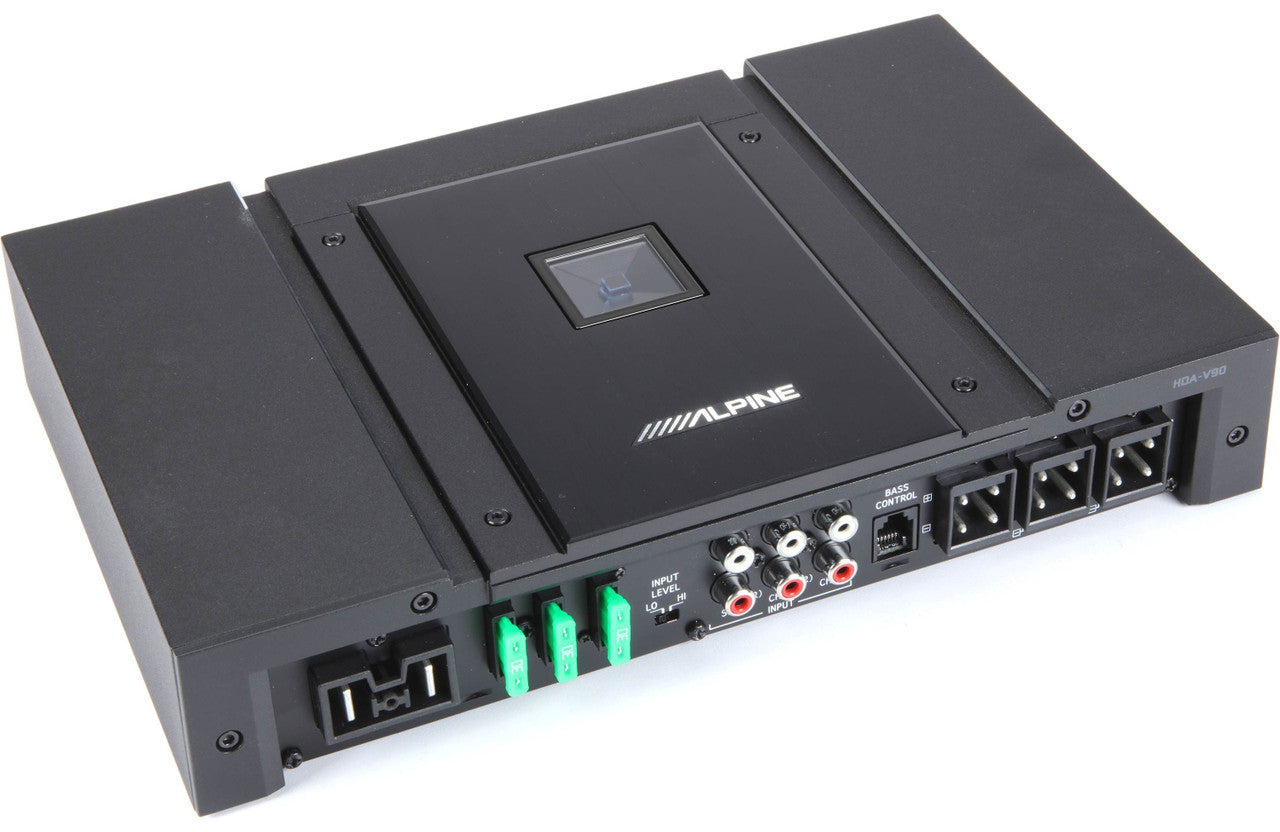

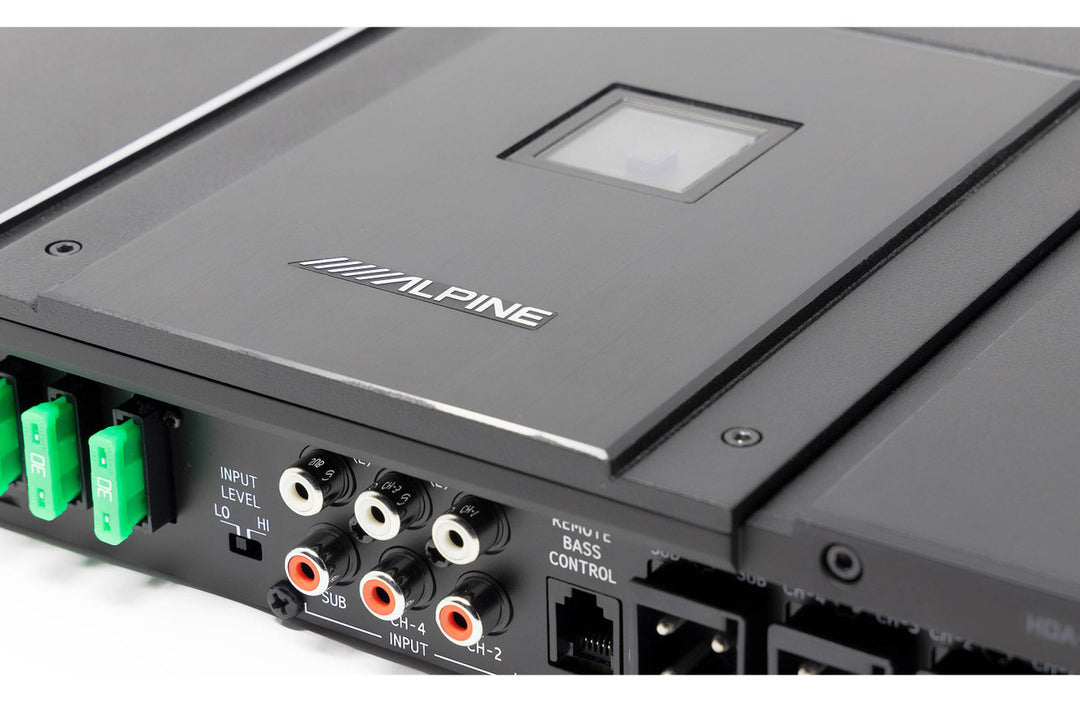

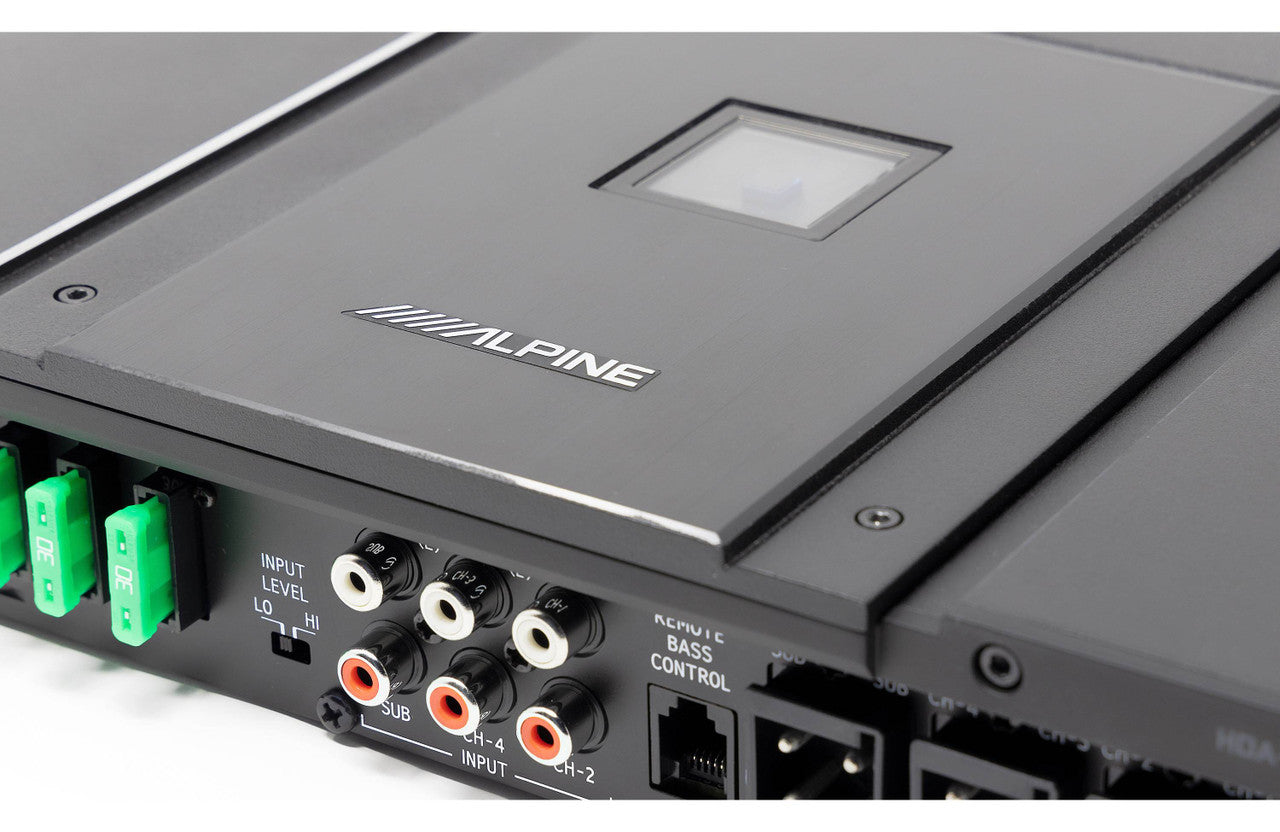

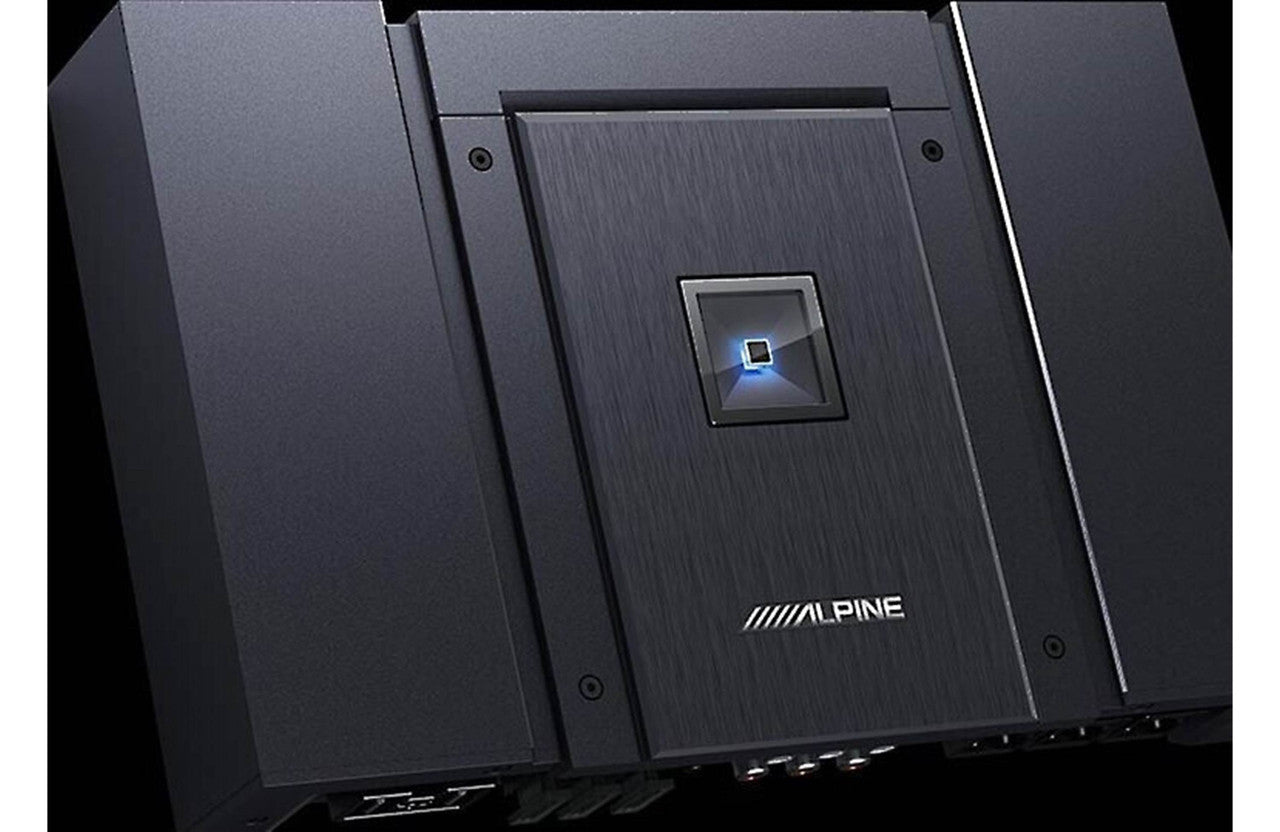

Name: Alpine HDA-V90: 5-Channel High Resolution Status Amplifier
Brand: Alpine
SKU: HDA-V90
Price: 1598.0 CAD
Availability: InStock

$1,598.00

Shipping calculated at checkout.

In stock, ready to ship
Backordered, shipping soon

About the Alpine HDA-V90: 5-Channel High Resolution Status Amplifier

Using expertise gleaned from over 5 decades of crafting premium car audio products and trickle down engineering and design from the ultra High Resolution Alpine F1 Status system technologies, the Alpine Status system features exceptional tooling and rich build quality for the best possible sound reproduction. Each component was hand picked from the Highest quality materials for the Highest in class audio performance, that when used as a complete system, can achieve 192 kHz / 24 bits playback.

Impressive output:

Powering a High Resolution sound system without contributing noise during playback requires efficiency and precision and the HDA-V90 was intentionally designed to provide impressive power output to the system while ensuring the purest audio performance. The Amplifier's wide dynamic range capability provides impressive output in a compact chassis that fits most vehicle applications.

The HDA-V90 features a High efficiency digital circuit design that ensures ultra low distortion levels for precise sound reproduction and superb sound quality. Intentional designs, like a copper plated chassis and black circuit board, bring the signal to noise ratio up to 87dB and minimize noise and distortion during playback for complete music fidelity that’s true to the original source.

Featuring technology unique to Alpine, the Amplifier features Alpine's dual negative feedback control circuit to improve linearity for the most accurate sound amplification. This technology also stabilizes the Amplifier output while driving the speakers and subwoofers for ultimate reliability.

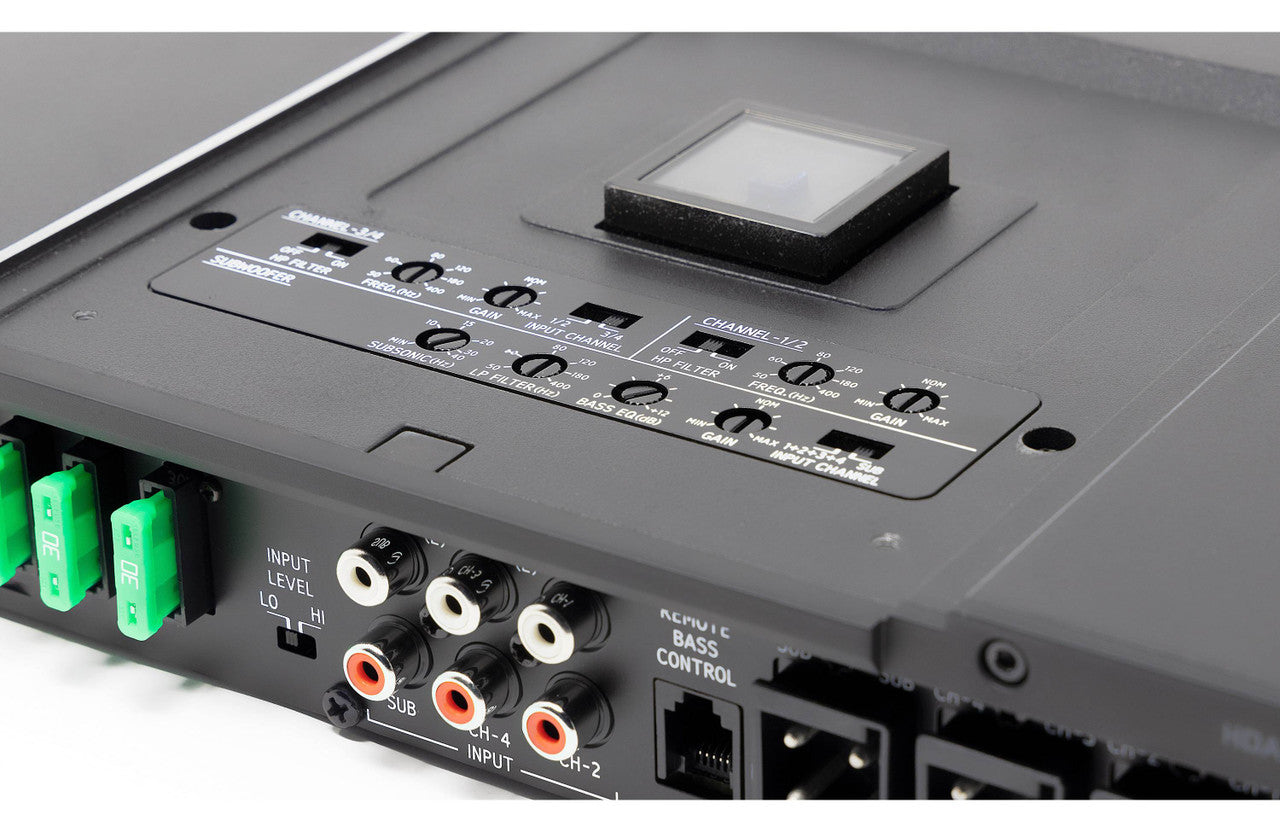

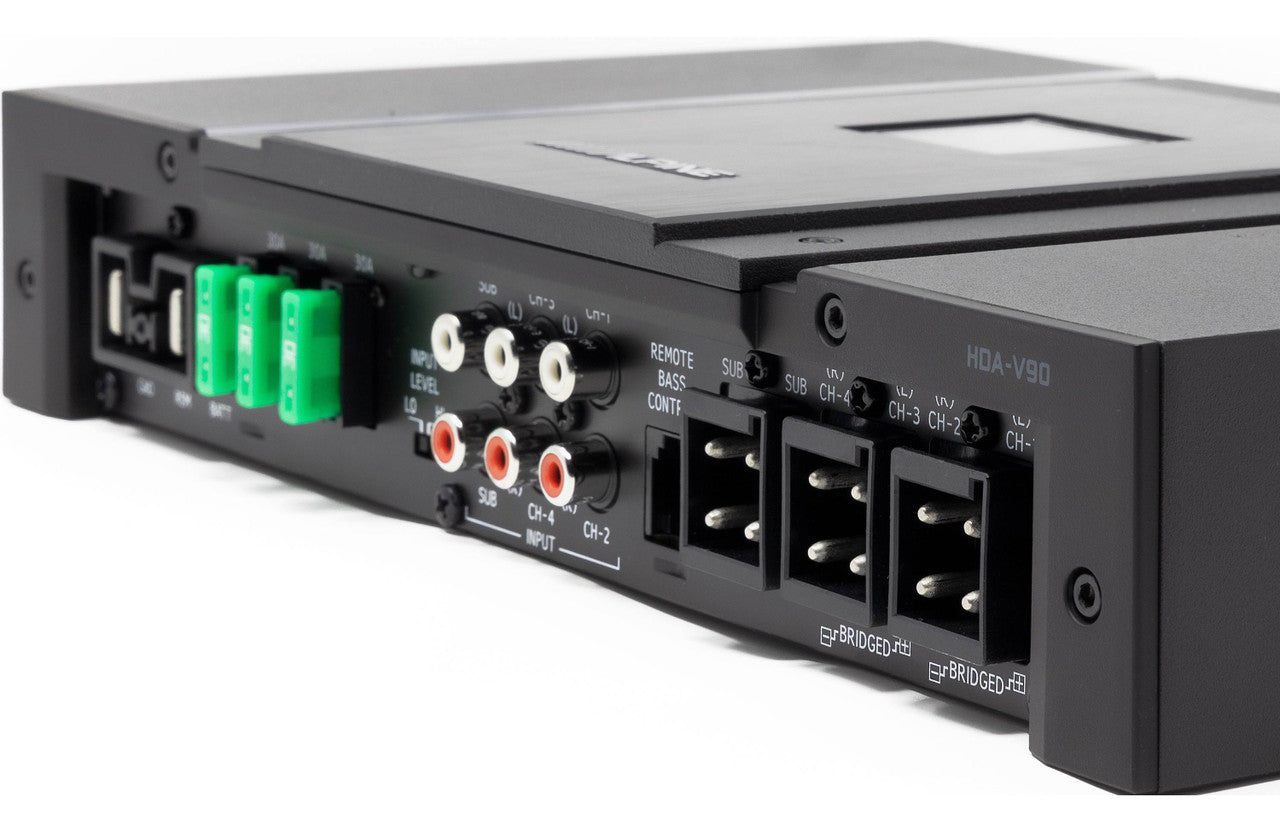

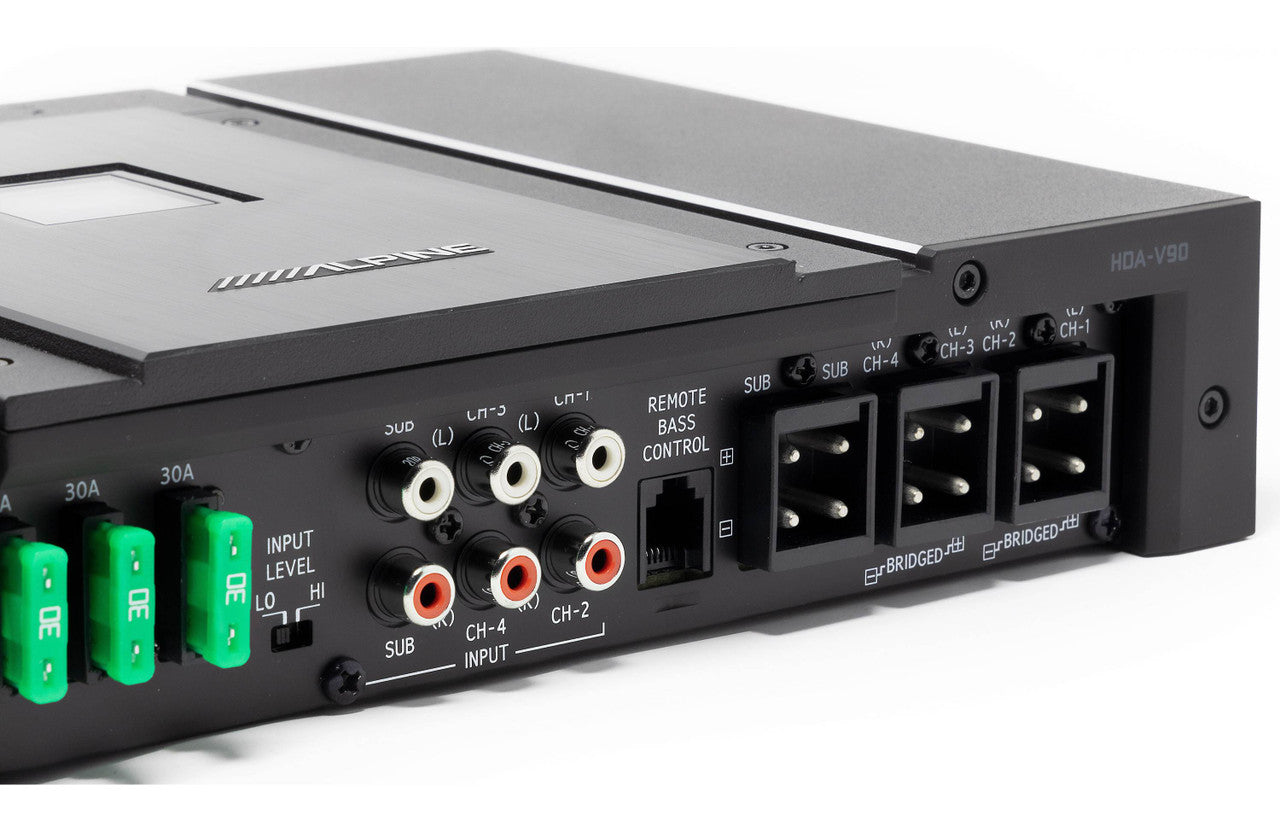

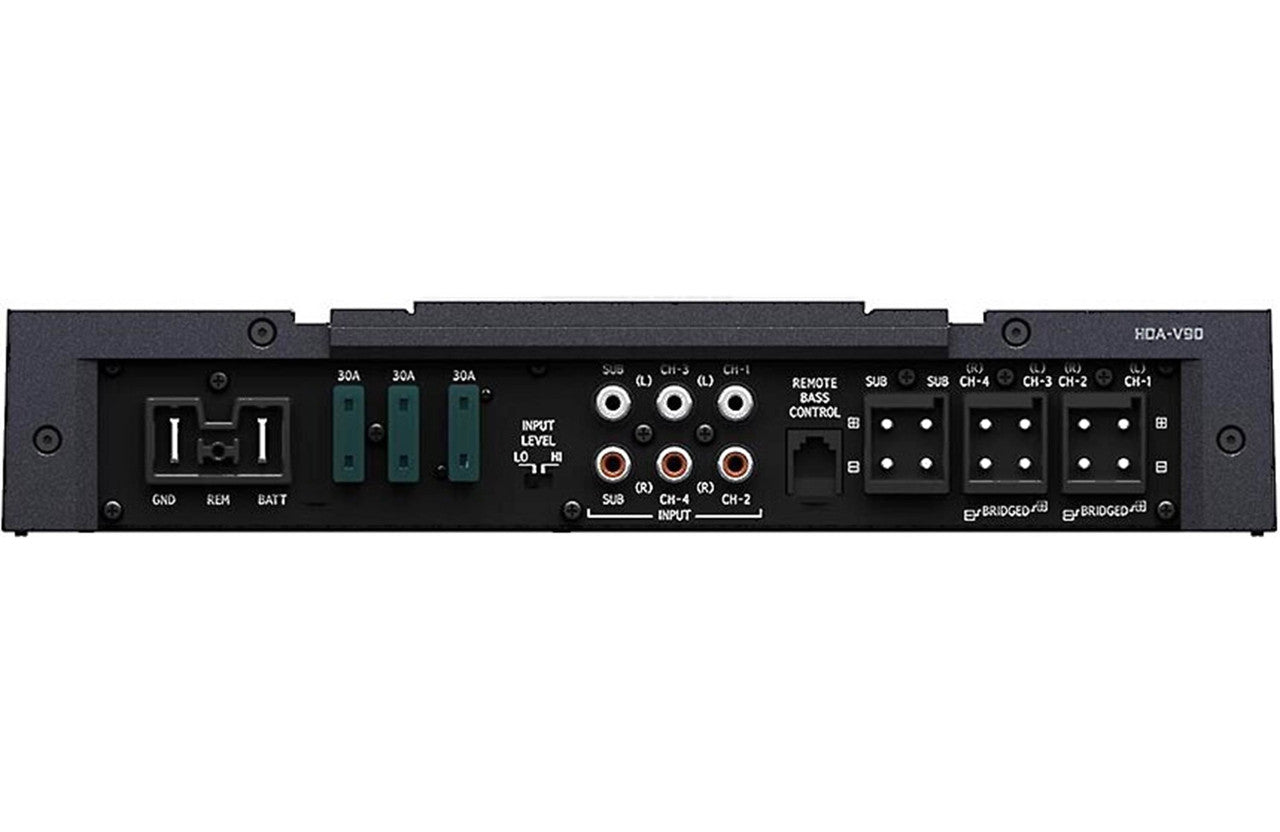

The HDA-V90 features Alpine's quick connect power and speaker connectors for quick and safe installation. The one sided terminal layout and top panel sound controls give the user quick access to controls on the Amplifier.

The Alpine Status system is sold separately and can be used to build a custom sound system. 3 sets of true 4 V preamp outputs are included to add additional Amplifiers if more power is needed. For best results, install the complete Alpine Status system together as a full system to achieve the Highest in class audio performance only 2nd to the ultra High Resolution Alpine F1 system.

Features:

5-Channel car Amplifier
75 W RMS x 4 + 300 W RMS x 1 at 4 ohms
100 W RMS x 4 + 500 W RMS x 1 at 2 ohms
200 W RMS x 2 bridged at 4 ohms + 500 W RMS x 1 at 2 ohms
High Resolution class-D Amplifier technology
Frequency response: (-3 dB) 8 - 60,000 hz

Variable high and low pass filters (50 - 400 hz, 12 dB / octave) and subsonic filter (8 - 40 hz, 24 dB / octave) and bass boost (0 - 12 dB, 50 hz)

More information:
Preamp and speaker level (up to 10 V) inputs

Speaker level inputs require speaker wire to RCA adapters and feature signal sensing Amplifier turn on
Optional RUX-knob.2 wired remote level control for sub Channel

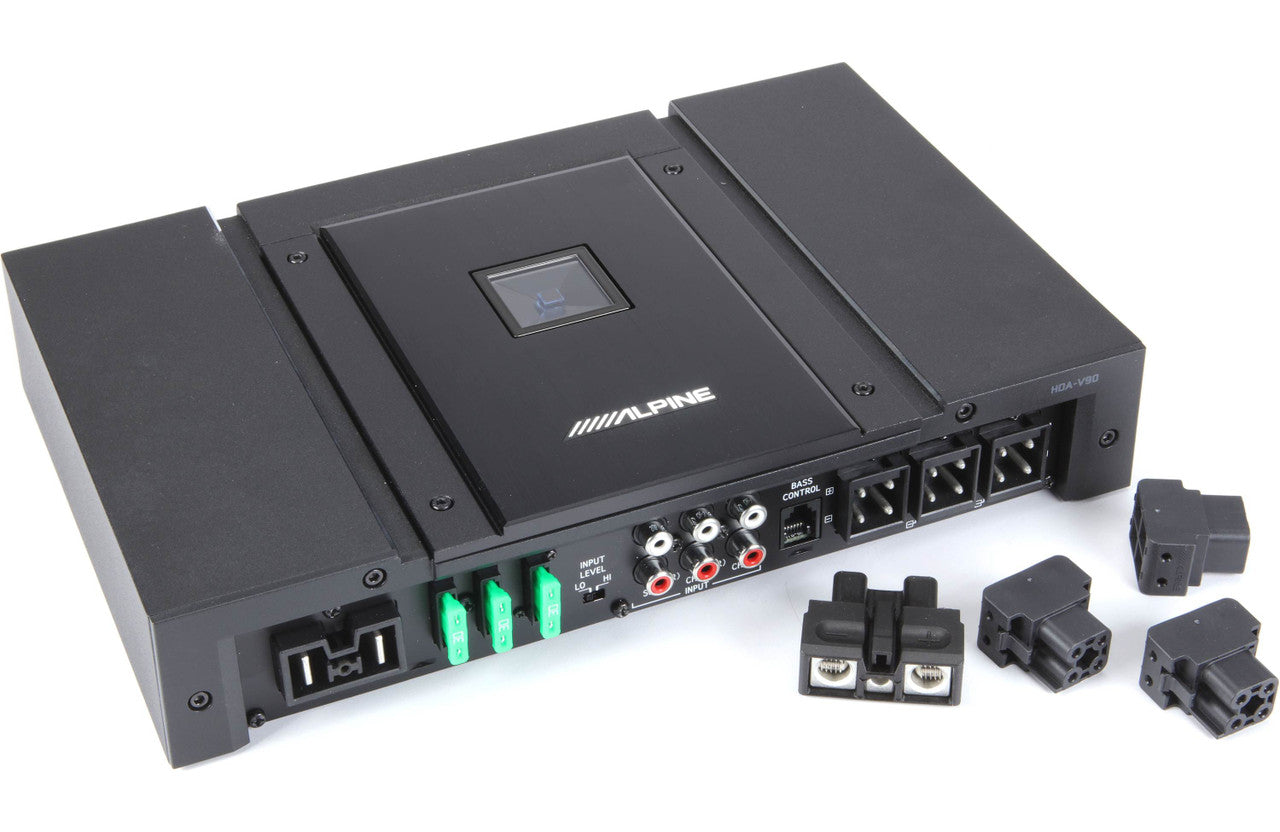

Quick connect power and speaker connectors
Wiring and hardware not including Amplifier
4 gauge power and ground wire recommended

Fuse rating: 30 A x 3; 11 - 7 / 16" W x 2 - 1 / 8" H x 7.5" D
