Alpha Theta EUPHONIA: 4-Channel Rotary Mixer

About the Alpha Theta EUPHONIA: 4-Channel Rotary Mixer

The EUPHONIA produces a EUPHORIC sound through the clarity of digital and the richness of analog that's never been heard from a DJ Mixer before.

To deliver a clearer sound quality that accurately reproduces the expression of the music, the EUPHONIA uses high quality 32 bits A / D and D / A converters as well as 96 kHz / 64 bits floating point Mixing processing operations in the DSP, utilizing the digital signal processing technology Alpha Theta has developed over many years.

All sound coming out of the EUPHONIA passes through a transformer circuit co designed by Alpha Theta and Rupert Neve designs, the legendary makers of outstanding analog audio circuitry and Mixing desks revered by artists and sound engineers around the world.  This transformer circuit, tuned specifically for the EUPHONIA, adds harmonics to the music and creates a glossy and energetic sound that's smoother for Mixing.  Low frequencies such as kicks and bass are more stable and punchy, mid frequencies like vocals and instruments have more presence and gloss, and high frequencies such as high hats sound silky and natural.  The transformer breaks down the barrier between vintage live and modern electric sounds, making Mixing easier and surprisingly natural, as if recordings in different styles were originally 1 piece of music.

Specially developed Rotary fader makes you feel one through the music:

When you touch the faders on the EUPHONIA, you won't want to let go.  To enhance its intuitive Mixing experience, the unit is loaded through Rotary faders that feature a brand new carefully developed design to give you the feeling that you and the Mixer are one. After extensive testing, the perfect knob sizes were chosen, through an elastomer applied to the outer circumference of each to ensure a comfortable and reliable grip as well as a high level of vibration absorption.

The uniquely developed mechanism for the faders also benefits from optimum weighting. You'll notice a difference in the feel of the knobs when you turn them at different speeds, as a smooth load is applied when you turn a knob slowly for delicate fine tuning and a limited load level is applied when you turn a knob quickly to instantly reach your intended volume level.  And the fader volume curves have been optimized through feedback from numerous DJ's, enabling smooth and natural Mixing without equalizing, so you can concentrate on volume control.  This innovative fader allows for musical expression that will move your audience and enhance your performance.

Energy visualizer for understanding overall sound at first glance:

Get an instant visual grasp of the status of your Mix and the balance of track volume levels by glancing at the EUPHONIA's energy visualizer.  Conventional VU meters only have 1 needle meter, making it difficult for DJ's to grasp multiple-Channel levels at the same time.  But the EUPHONIA's uniquely developed Mix level meter features a needle meter for each-Channel so you can visually check the levels for all-Channels and Mix smoothly while keeping the groove going.  You can even keep an eye on the balance of the master output by looking at the spectrum analyzer, which helps you keep your Mixes sounding consistent and smooth, even in a long set, as you "watch" the EUPHONIA's output and adjust it to create your perfect sound.

Next generation 3 bands master isolator that transforms sensibility into sound at your will:

Highest quality isolator, the size of the isolator knobs is perfect for rapid turns from center to maximum or minimum, and the torque load is perfectly balanced for both quick operation and fine sound quality adjustment, through a luxurious feel that's not too light. The cutoff frequency and slope are set to control and highlight the kick, melody, and rhythm bands in a natural yet sharp manner.

Brand new boost send for one handed effects application, add one of the built in send effects, or from an external unit, to the sound of any of the master isolator frequency bands.  Press the boost send button for the low, mid, or high and, as you turn the isolator knob, the effect will be applied to that band.  This enables you to apply effects through a single hand in a way that previously needed 2, leaving the other hand free for Mixing another track.

Boost level to help you express your style, pick the boost level setting that suits your playing style and the volume level of each frequency band will be increased by the relevant amount.  Choose + 12 dB for dynamic performances, + 6 for sound quality adjustments, and 0 for reverb effects without any volume boost.

Built in send FX to bring depth and breadth to your sound:

The EUPHONIA features 5 built in spatial effects and a high pass filter, so you can easily add depth and breadth to your music.  These are: delay, tape echo and re and verb, shimmer, and HPF (high pass filter).  Also send / return section which you the option to connect external effects units.  A dedicated knob on each-Channel enables you to adjust the send level going to the selected effect, so you can apply just the right amount.  And the time knob, which allows you to adjust the effect delay and reverb time, has a proprietary mechanism developed specifically for this unit that automatically switches between a clicking sensation and no depending on the effect you've selected.  When using delay, tape echo and verb, the knob clicks according to the BPM, so you can quickly apply effects.  When you use reverb and shimmer, there's no clicking so you can turn the knob freely to perform smooth sweeps or make tiny adjustments to find the perfect setting.

Design that embodies a new era of Rotary Mixer:

The EUPHONIA was designed to signify a new era of Rotary Mixers, through a "2 tones and layers" look symbolizing tradition and innovation.  The channel strip section, which comprises traditional Mixer elements, is distinguished from the innovative display section by matte and gloss textures, resulting in a crisp design that combines analog and digital elements.  The copper color of the primary knobs conveys the warmness of analog sound, and the wood side panels are painted black to blend in through the overall aesthetic.

Features:

• EUPHORIC sound through digital clarity and analog polish from Rupert Neve designs transformer
• Specially developed Rotary fader makes you feel at one through the music
• Energy visualizer for understanding overall sound at first glance
• Next generation 3 bands master isolator that transforms sensibility into sound at your will
• Built in send FX to bring depth and space to the music
• Design that embodies a new era of Rotary Mixer

Other features:

• Send / return & master insert, supports both send / return and insert type effect pedals and units (like the RMX-1000).  You can use these connection types independently to create your ideal sound through various devices.  Insert type effects are applied to the master.
• Rekordbox, make full use of the low latency DVS feature for intuitive, smooth scratching.
• Serato DVS ready, use serato DVS to control and scratch through CDJ's or turntables.  You'll need to buy a license or subscription.
• Lockable power cord, relax in the knowledge that the lockable power cord will always stay firmly in place, even if you knock it while connecting or disconnecting other equipment from the Mixer.  In some regions, a non lockable power cord is supplied.
• Firmware update manager, you'll be automatically notified when firmware updates become available.

Specifications:

• Maximum external dimensions (W x D x H): 429.2 x 331 x 119.9 mm / 16.9" × 13" x 4.7"
• Main unit weight: 9.5 kg / 20.9 lbs
• Frequency response: 20 hz - 40 kHz (line)
• S / N ratio: 107 dB (USB, digital input); 88 dB (phono); 105 dB (line); 79 dB (microphone)
• Power requirements: AC 110 - 240 V, 50 / 60 hz
• Power consumption: 43 W
• Compatible software: Rekordbox, serato DJ professional
• Accessories: power cord, quick start guide, precautions for use

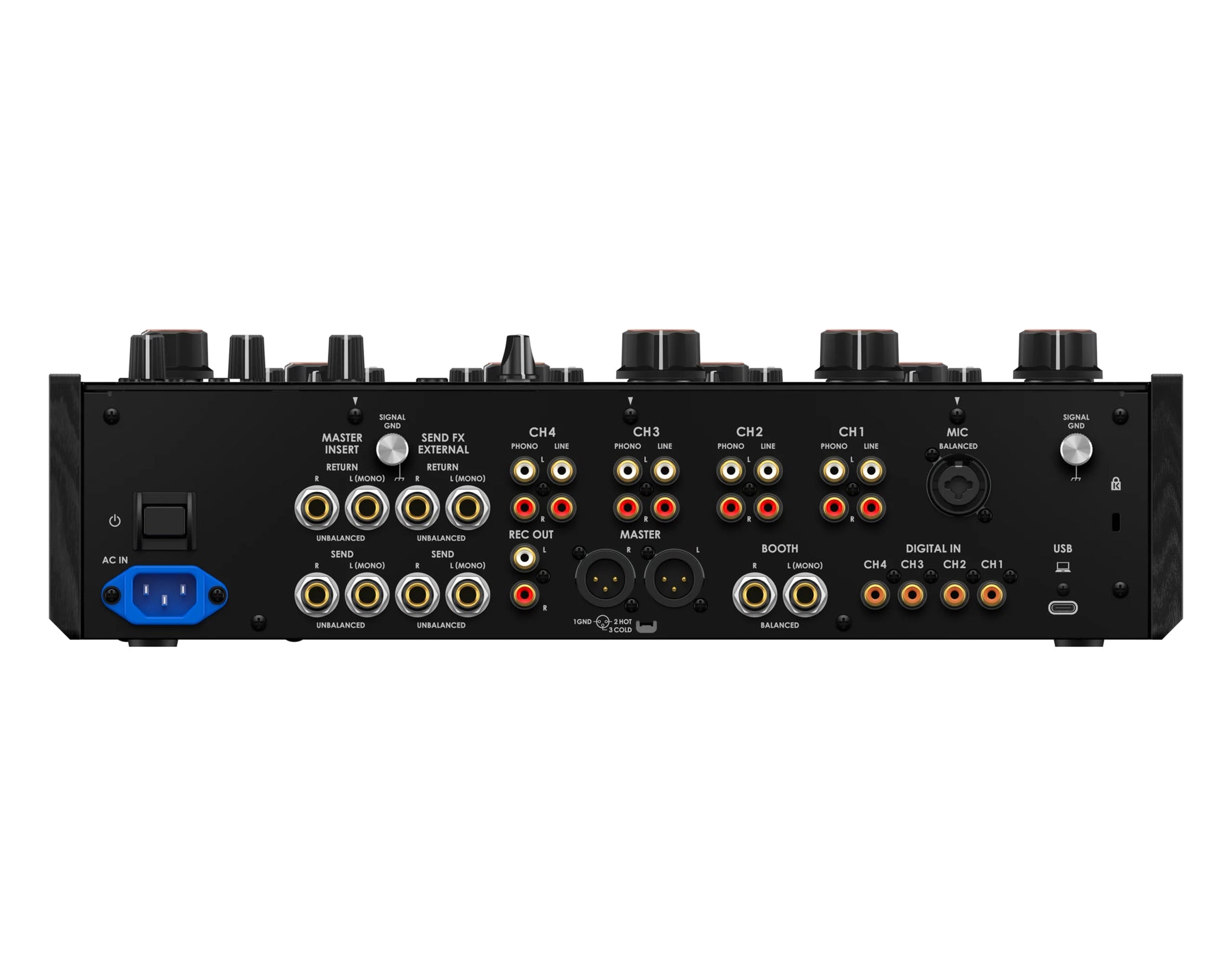

• Terminals: inputs; digital input x 4 (coaxial); line x 4 (RCA); phono x 4 (RCA); microphone x 1 (XLR & 1 / 4" TRS jack)
• Outputs: master x 1 (XLR); booth x 1 (1 / 4" TRS jack); recording x 1 (RCA); phones x 2 (1 / 4" and 3.5 mm stereo phone and mini jack)
• USB: type C x 1
• Others: send and return x 2 (1 / 4" TS jack)
