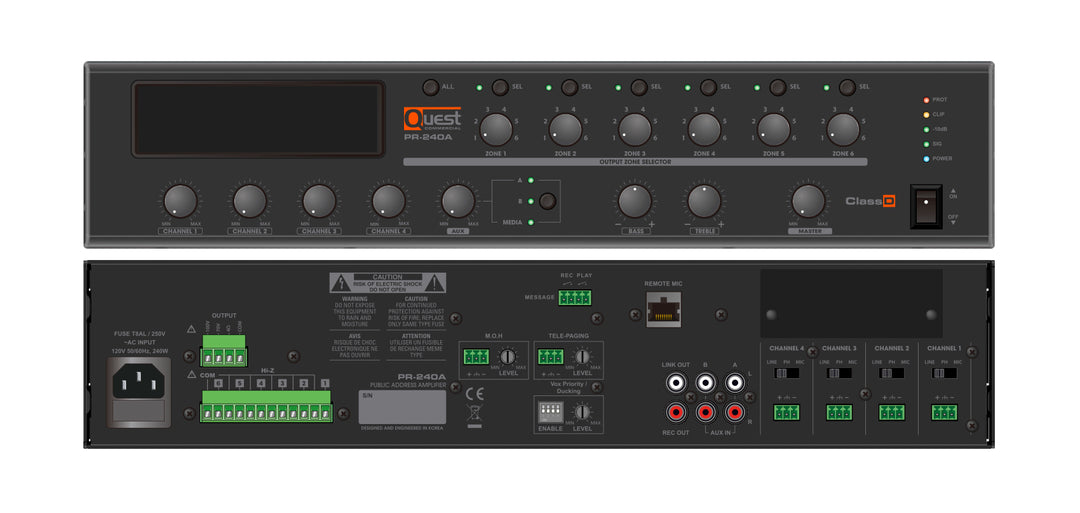

Quest Commercial PR-240A: 240 W 6-Zones Mixer / Amplifier

About the Quest Commercial PR-240A: 240 W 6-Zones Mixer / Amplifier

The Quest Commercial PR240A is a 240 W all in one Commercial Mixer / Amplifier, and the ultimate solution for sound distribution systems in small to medium sized Commercial premises, delivering the best and highest quality audio at an affordable price.  It also has a constant voltage power Amplifier allowing use at 70 / 100 V or at low impedance of 4 ohms.

The PR-130A can deliver a power of 130 W, and the PR-240A a power of 240 W.  They offer 6 inputs channels (terminal block / RCA) through independent level controls to facilitate the connection of sound sources.  It has a telephone paging input for connection to a telephone system for announcement, a digital remote microphone input on RJ45 for connection to a RM6, 6-Zones paging microphone.

A music on hold feature is also available for businesses wishing to enhance their customers' telephone experience.  When you connect these Mixers to a telecommunications system, customers can listen to music or pre recorded messages while they wait.

Features:

• Designed for the most common Commercial installation requirements.
• Ideal for background music, microphone, and paging through the ability to connect 6 external sources.
• Industry standard connectors to make installs fast and efficient.
• Front panel controls to easily manage source and master volumes through bass & treble control.
• 2 U rack mountable (ears included).
• 4 balanced microphone / line inputs, through 48 V phantom.
• 2 AUX in, 1 line and link out, all on RCA connectors.
• 6-Zones out through discrete volume control and paging microphone input on RJ45 (not included here).
• Optional RM6: 6-Zones paging microphone station.

• Tel paging, and music on hold (MOH) through volume controls.
• Priority through ducking level control & channel selector.
• Contact closure to record / play messages.
• Phoenix / euro connectors.
• CSA / UL approved.
• Class-D & switching power supply: PR-130A @ 120 V / 2.2 A; PR-240A @ 120 V / 3.8 A
• All in one solution for Commercial and industrial applications.
• Bass & treble controls.
• 3 years warranty.

Specifications:

• Total rated power output: 240 W
• Speaker output: 4 Ω; 70 / 100 V
• Input Connectors: CH 1 - 4: microphone / line on balanced 3 conductor phoenix connectors through phantom power; AUX: 2 line inputs on stereo RCA
• Speaker output connectors: 6-Zones outputs for high Z (70 / 100 V) only, or single output for 4 Ω; 70 / 100 V
• Frequency response: 80 hz - 18 kHz (± 3 dB)
• Tone control 100 hz - 10 kHz; ± 12 ± 3 dB
• S / N ratio: < 90 dB
• THD (1 kHz): < 0.5 %
• Crosstalk at all control maximum: - 70 dB at 1 kHz
• Phantom power: + 48 VDC
• Protection: over current and temperature / under voltage / DC fault
• Power supply: 120 V AC, 50 - 60 hz
• Carton dimensions (W x D x H): 20.7 x 16.5 x 7.6" (525 x 420 x 193 mm)
• Weight (net): 24.3 lbs (11 kg)
